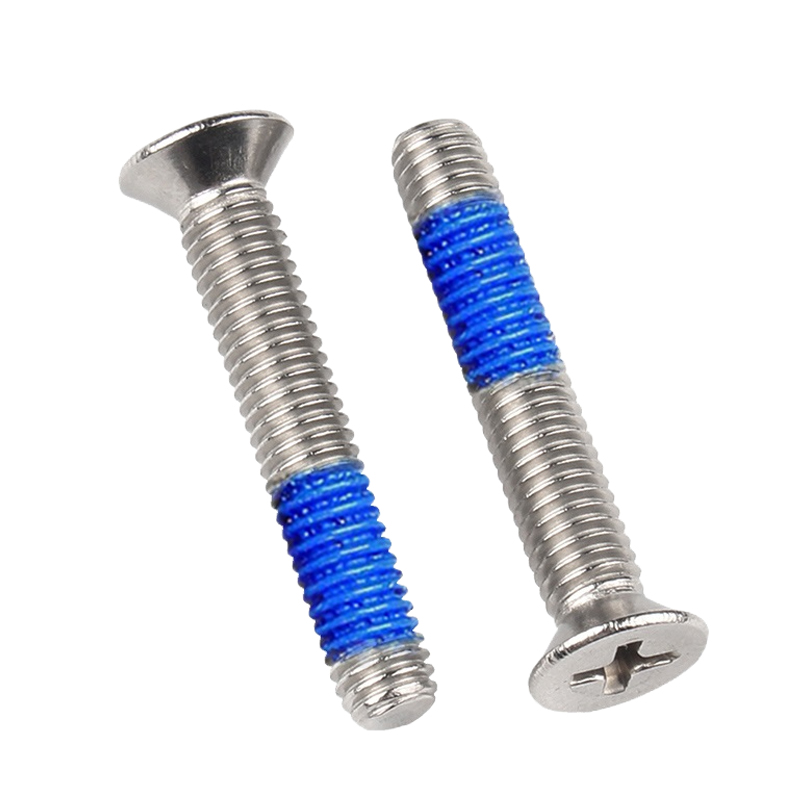

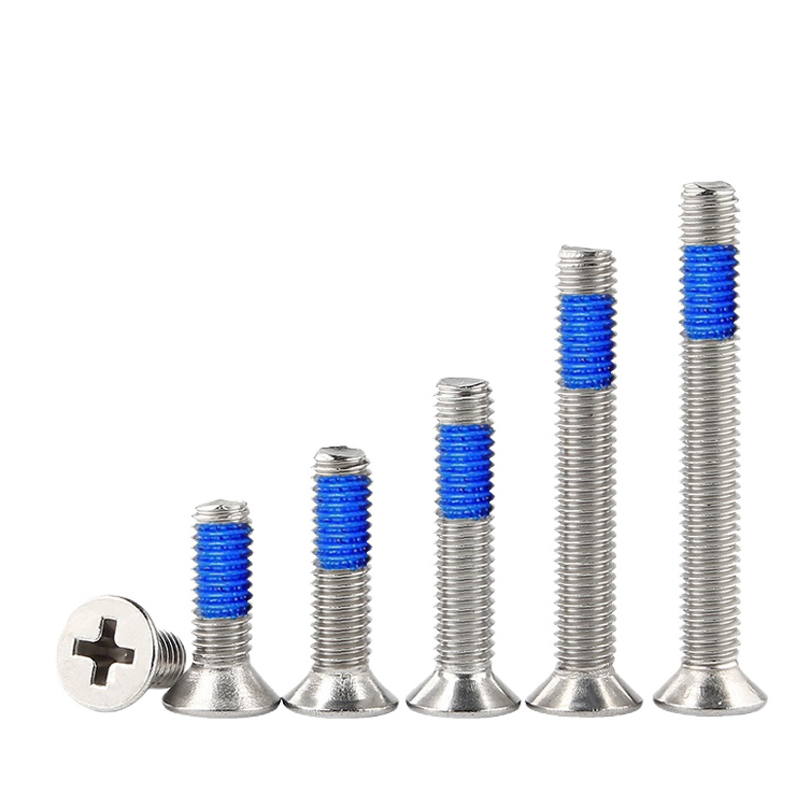

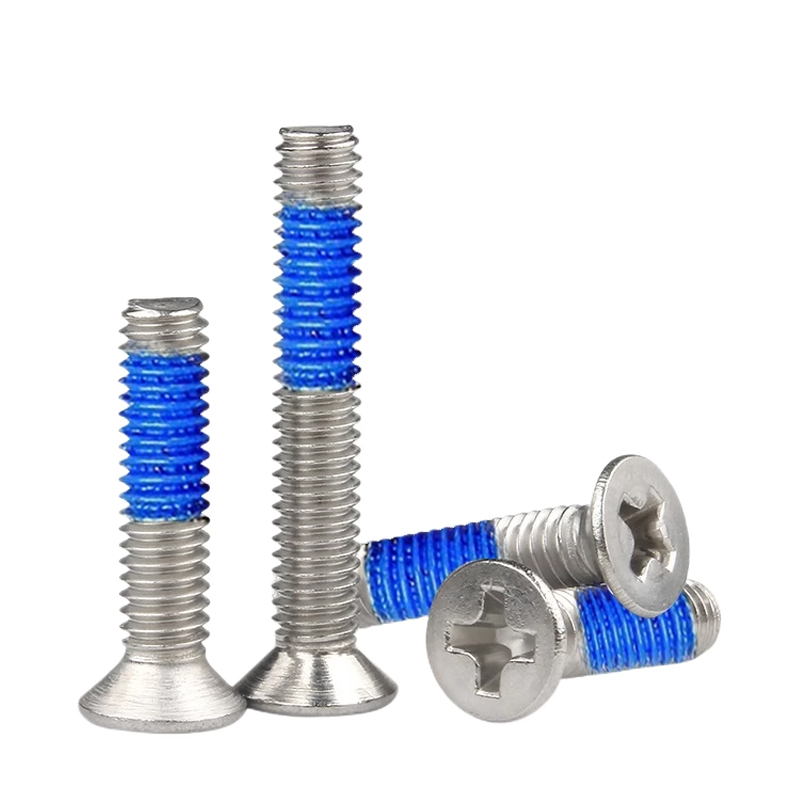

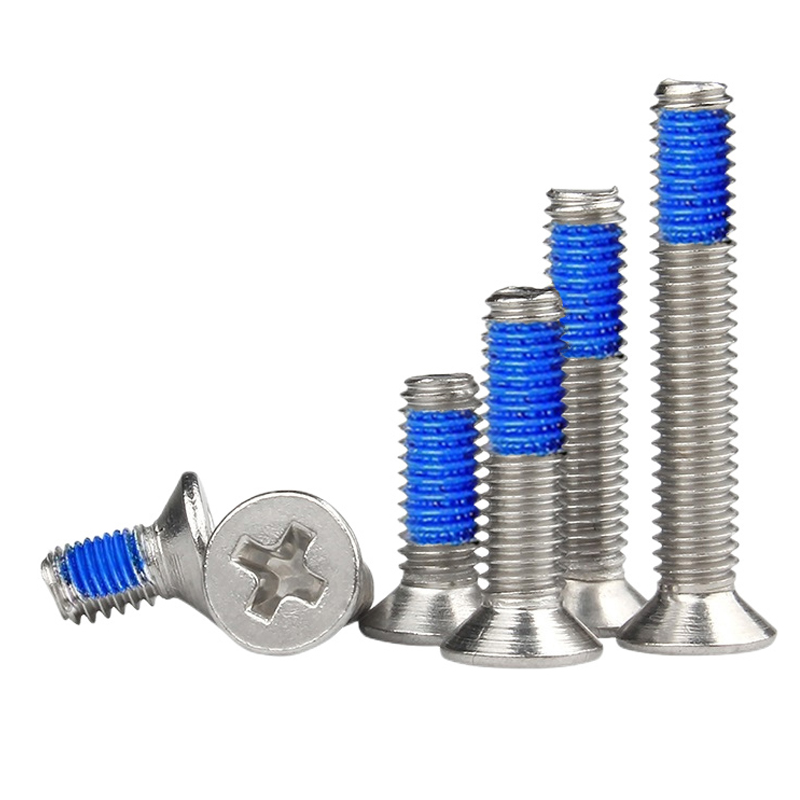

metric SS304 stainless steel dispensing cross countersunk head blot 1 pcs
$0.0309
Thread Type: metric Material: SS304 stainless steel Surface treatment: dispensing Threading: fully threaded Fastener screw type: cross countersunk head blot
| M1 | M1.2 | M1.4 | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | |
| d | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 |
| P | 0.25 | 0.25 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| dk MAX | 2 | 2.1 | 3.2 | 3.0 | 3.8 | 4.7 | 5.5 | 7.6 | 8.9 | 11.2 | 14.7 | 18.3 |
| dk MIN | 1.7 | 1.8 | 2.8 | 2.7 | 3.5 | 4.4 | 5.2 | 7.1 | 8.5 | 10.5 | 14.1 | 17.5 |
| k | 0.6 | 0.9 | 1.0 | 1.2 | 1.3 | 1.5 | 1.7 | 2.6 | 3.1 | 3.6 | 4.5 | 6.0 |
