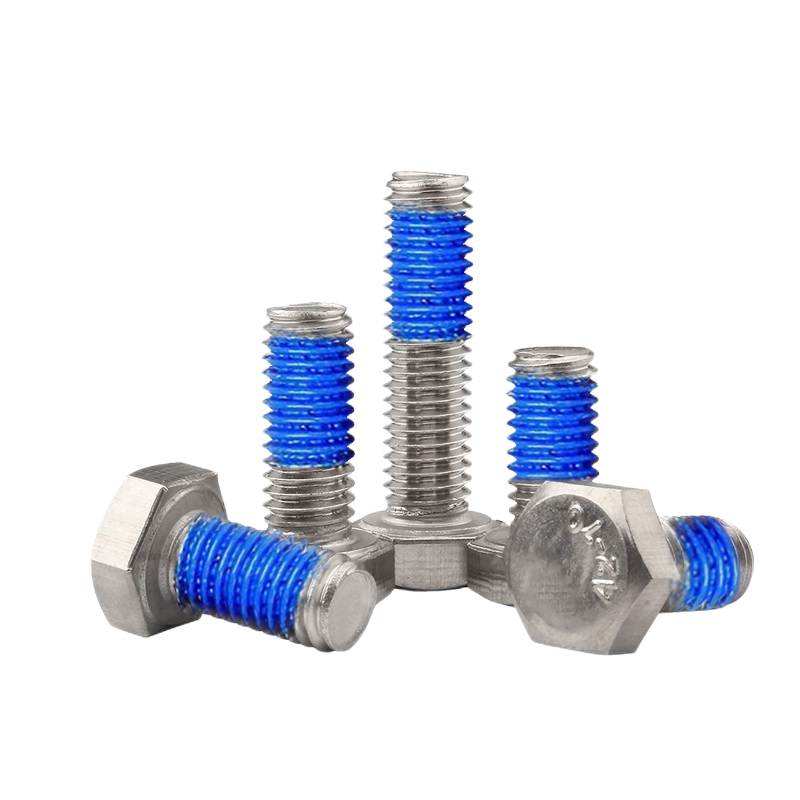

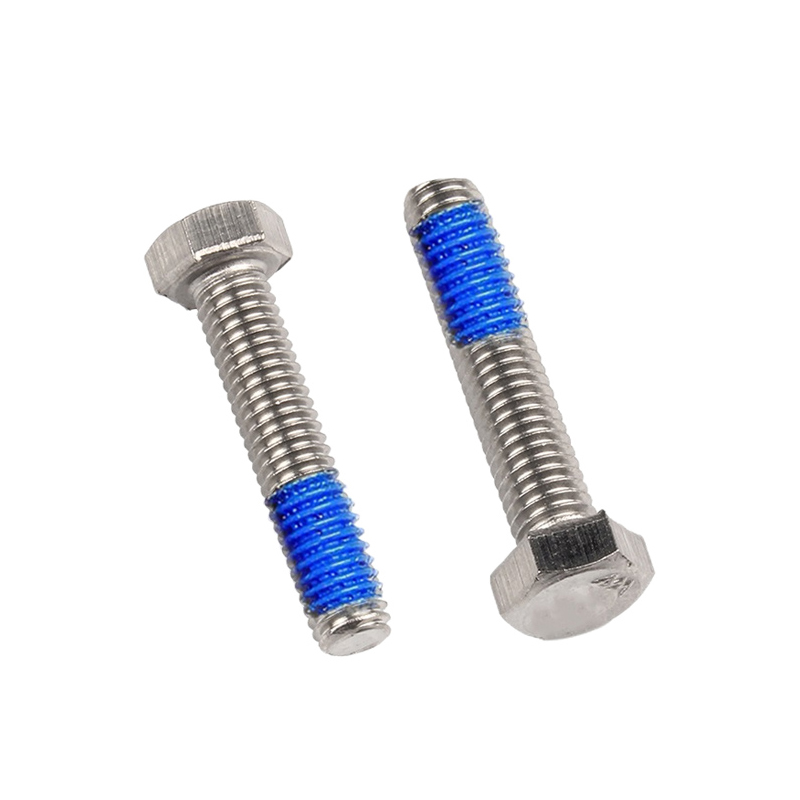

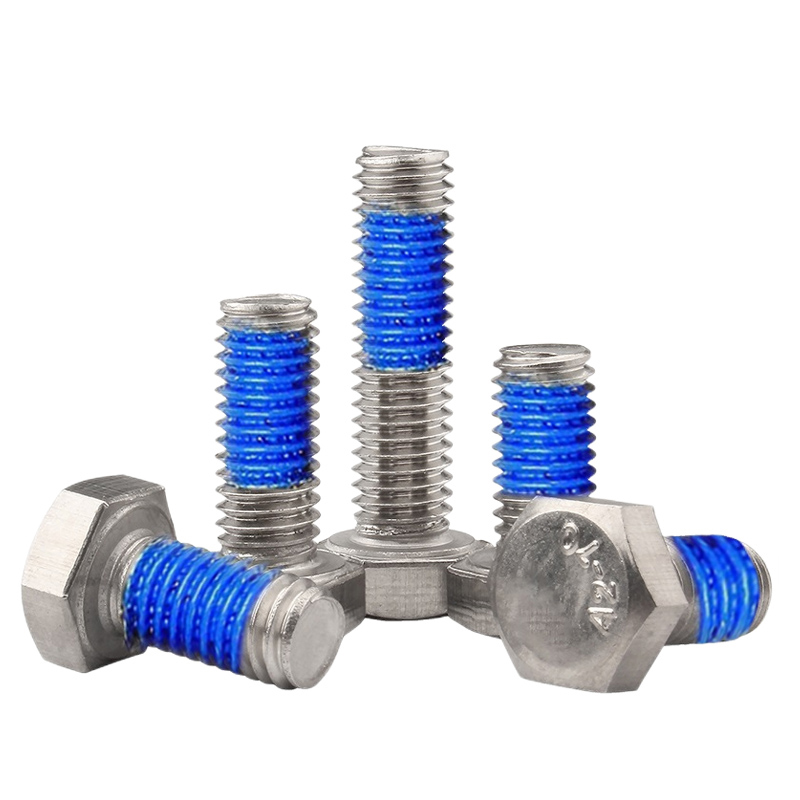

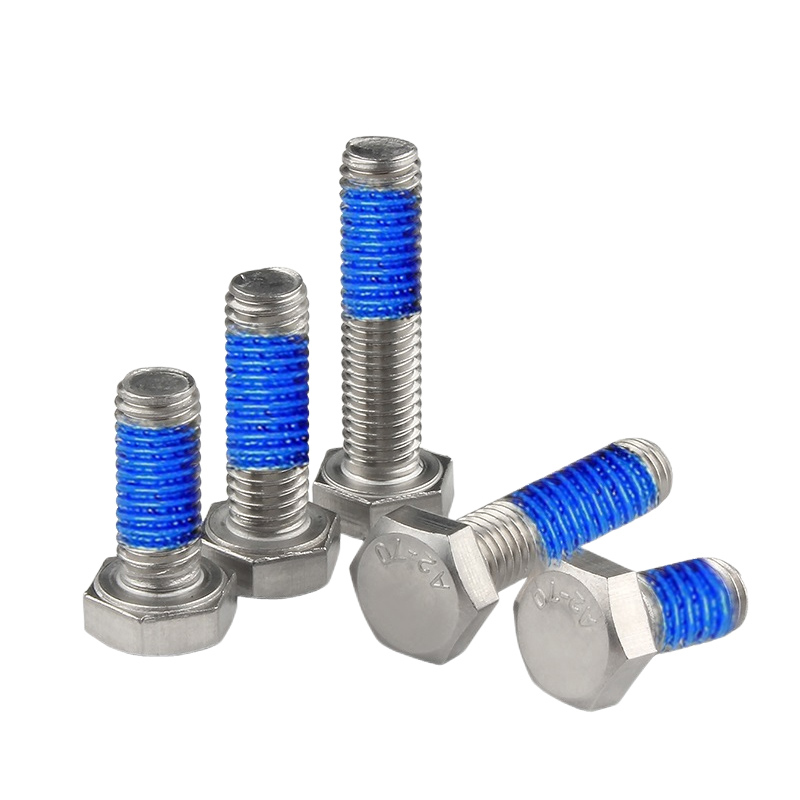

metric SS304 stainless steel dispensing external hexagon head blot 1 pcs
$0.0771
Thread Type: metric Material: SS304 stainless steel Surface treatment: dispensing Threading: fully threaded Fastener screw type: external hexagon head blot
| Diameter d |
Thread pitch P |
k | S | ||
| max | min | max | min | ||
| M3 | 0.5 | 2.2 | 1.9 | 5.5 | 5.25 |
| M4 | 0.7 | 3 | 2.8 | 7 | 6.75 |
| M5 | 0.8 | 3.74 | 3.26 | 8 | 7.85 |
| M6 | 1 | 4.24 | 3.76 | 10 | 9.65 |
| M8 | 1.25 | 5.54 | 5.26 | 13 | 12.77 |
| M10 | 1.5 | 6.69 | 6.38 | 17 | 16.72 |
| M12 | 1.75 | 7.79 | 7.41 | 19 | 18.58 |
| M14 | 2 | 9.09 | 8.76 | 22 | 21.66 |
| M16 | 2 | 10.29 | 9.91 | 24 | 23.66 |
| M18 | 2.5 | 11.79 | 11.57 | 27 | 26.68 |
| M20 | 2.5 | 12.82 | 12.52 | 30 | 29.52 |
| M22 | 2.5 | 14.22. | 14.12. | 32 | 31.64 |
