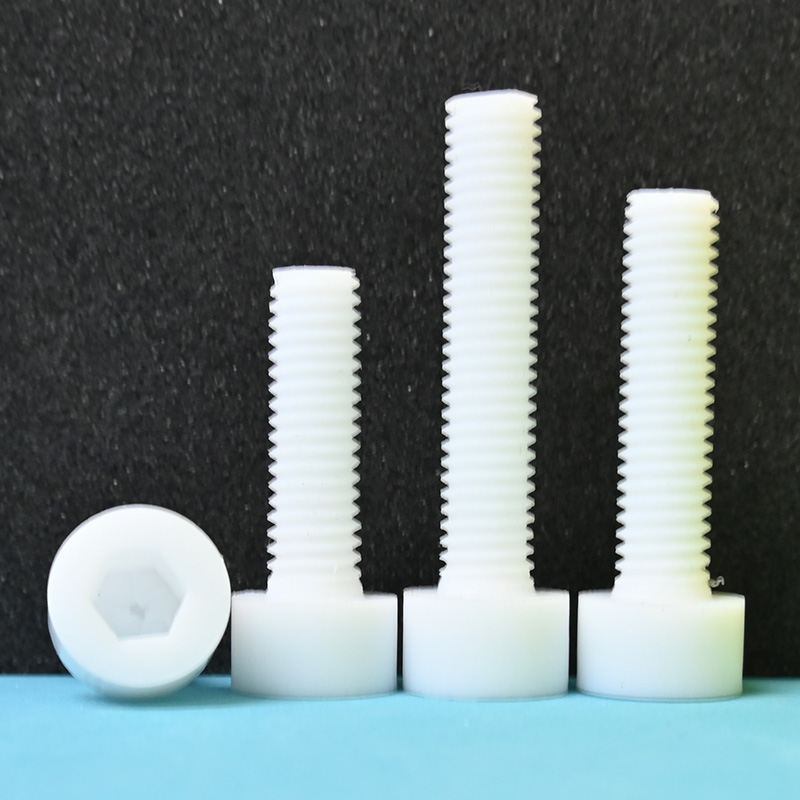

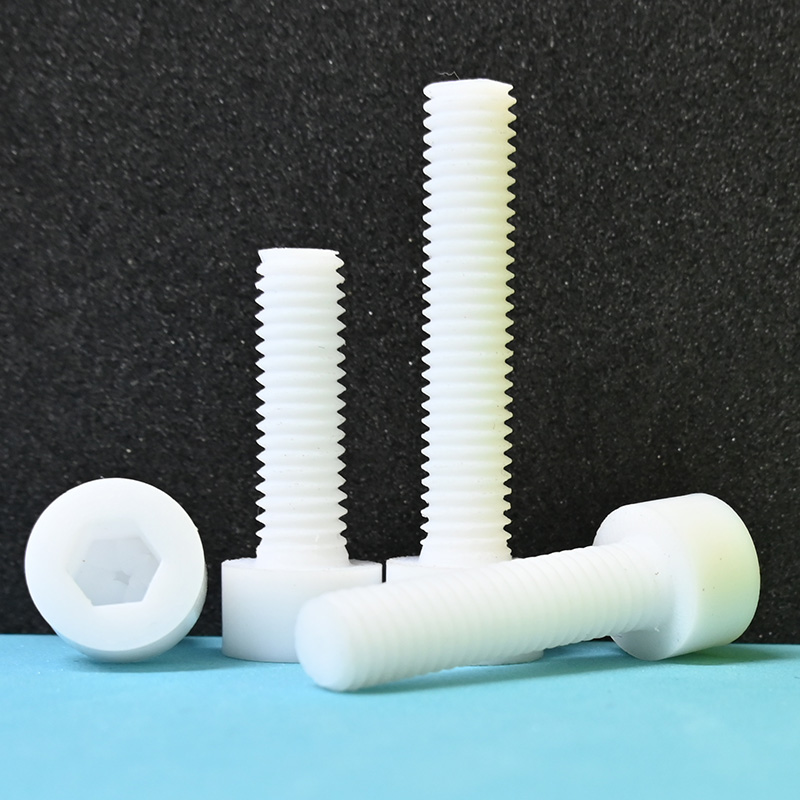

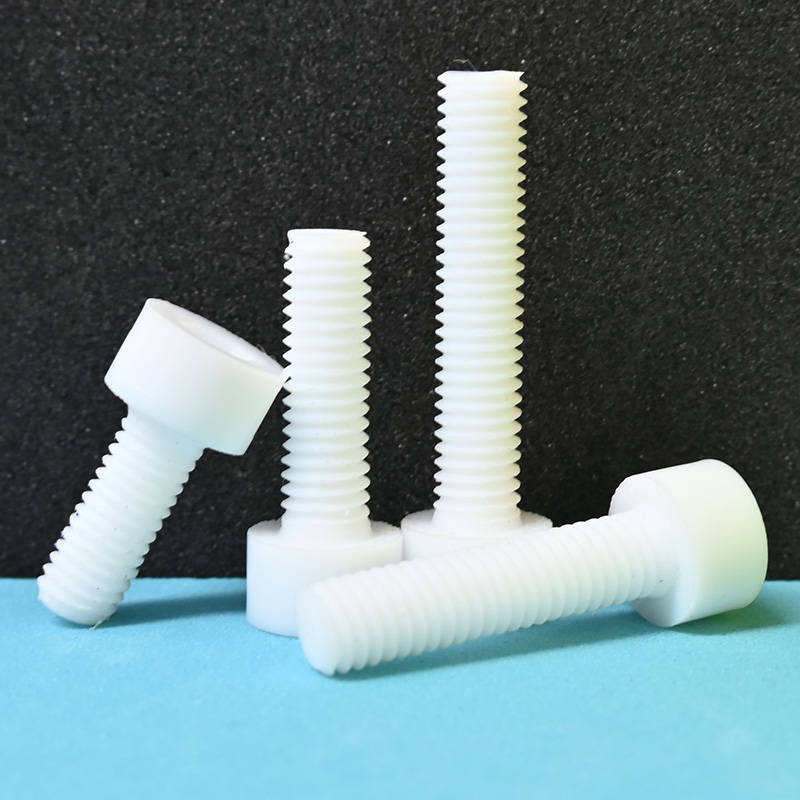

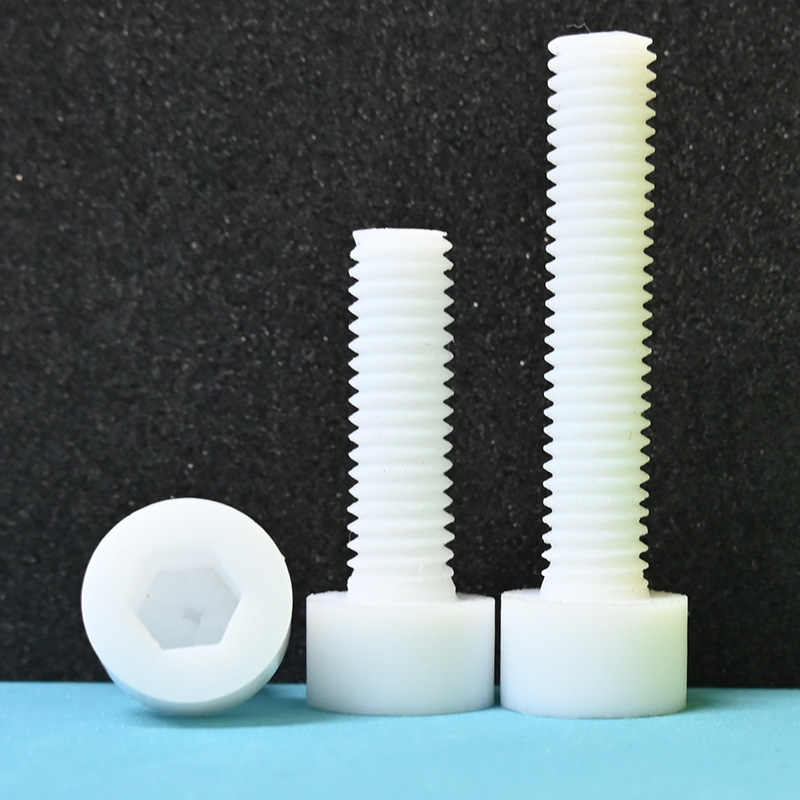

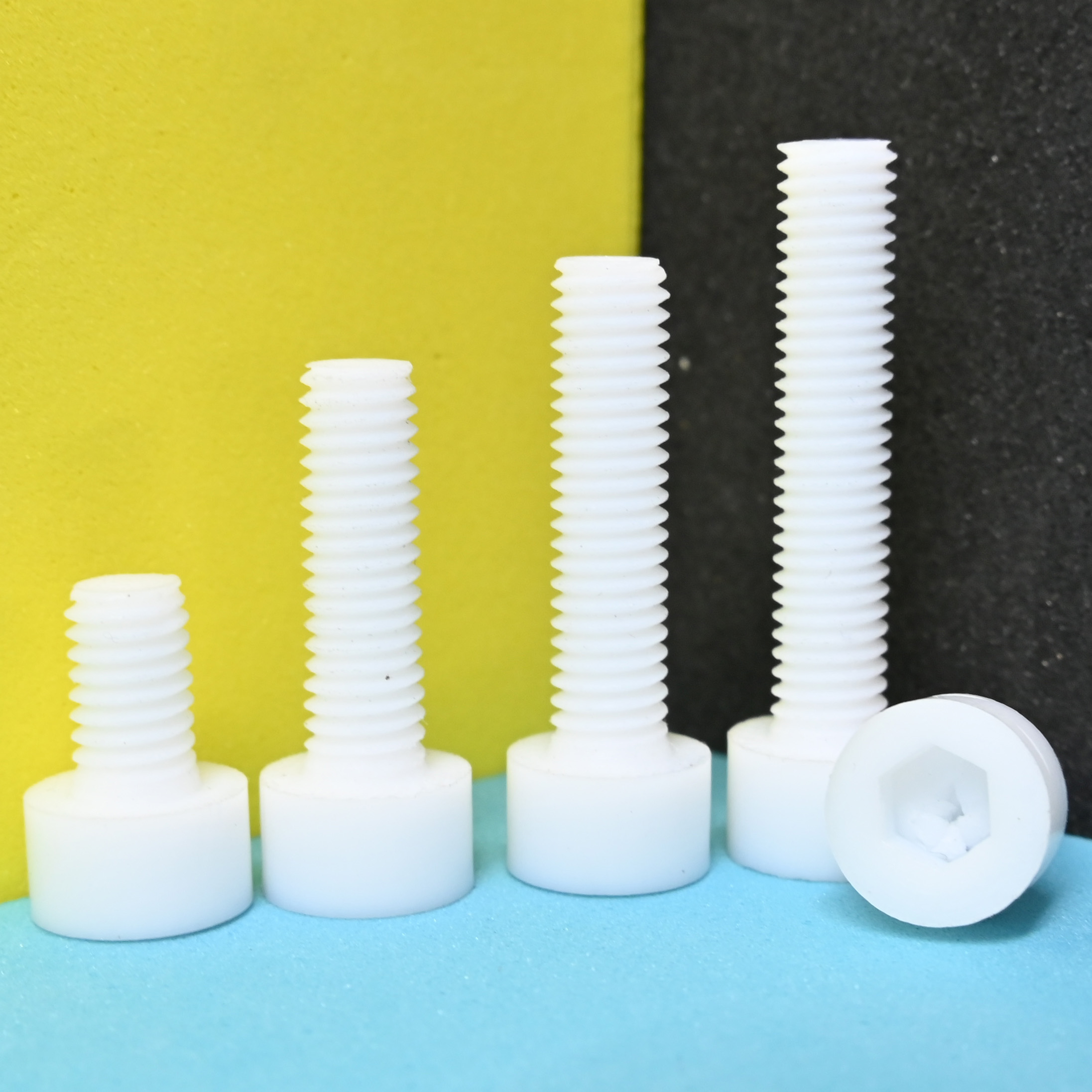

metric PTFE cylindrical head hexagon socket blot 1 pcs
$1.1429
Thread Type: metric Material: PTFE Threading: fully threaded Fastener screw type: cylindrical head hexagon socket blot
| Diameter d |
Thread pitch P |
dk | k | s | t | |||
| max | min | max | min | max | min | min | ||
| M1.4 | 0.3 | 2.74 | 2.46 | 1.4 | 1.26 | 1.36 | 1.32 | 0.6 |
| M1.6 | 0.35 | 3.14 | 2.86 | 1.6 | 1.46 | 1.56 | 1.52 | 0.7 |
| M2 | 0.4 | 3.98 | 3.62 | 2 | 1.86 | 1,56 | 1.52 | 1 |
| M2.5 | 0.45 | 4.68 | 4.32 | 2.5 | 2.36 | 2.06 | 2.02 | 1.1 |
| M3 | 0.5 | 5.68 | 5.32 | 3 | 2.86 | 2.58 | 2.52 | 1.3 |
| M4 | 0.7 | 7.22 | 6.78 | 4 | 3.82 | 3.08 | 3.02 | 2 |
| M5 | 0.8 | 8.72 | 8.28 | 5 | 4.82 | 4.095 | 4.02 | 2.5 |
| M6 | δΈ€ | 10.22 | 9.78 | 6 | 5.7 | 5.14 | 5.02 | 3 |
| M8 | 1.25 | 13.27 | 12.73 | 8 | 7.64 | 6.14 | 6.02 | 4 |
| M10 | 1.5 | 16.27 | 15.73 | 10 | 9.64 | 8.175 | 8.025 | 5 |
| M12 | 1.75 | 18.27 | 17.73 | 12 | 11.57 | 10.18 | 10.025 | 6 |
| M14 | 2 | 21.33 | 20.67 | 14 | 12.57 | 12.21 | 12.032 | 7 |
| M16 | 2 | 24.33 | 23.67 | 16 | 15.57 | 14.21 | 14.032 | 8 |
| M20 | 2.5 | 30.33 | 29.67 | 20 | 19.48 | 17.23 | 17.05 | 10 |
