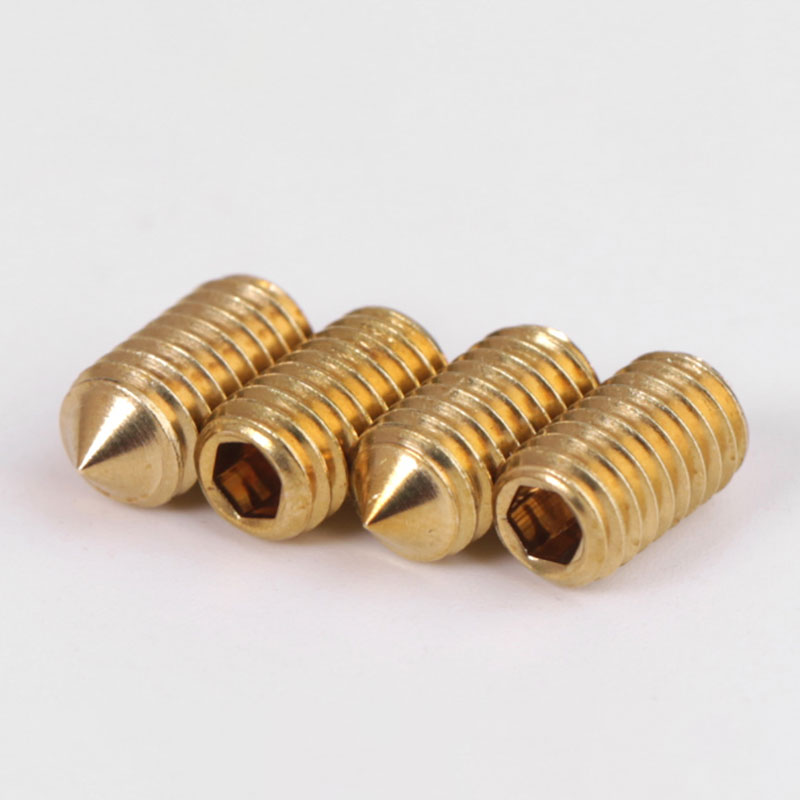

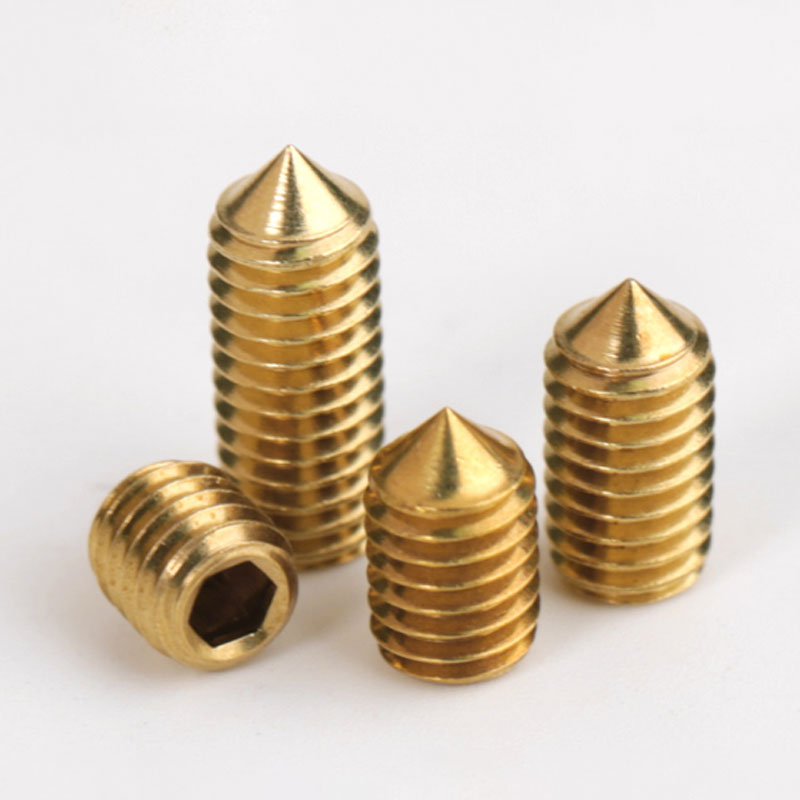

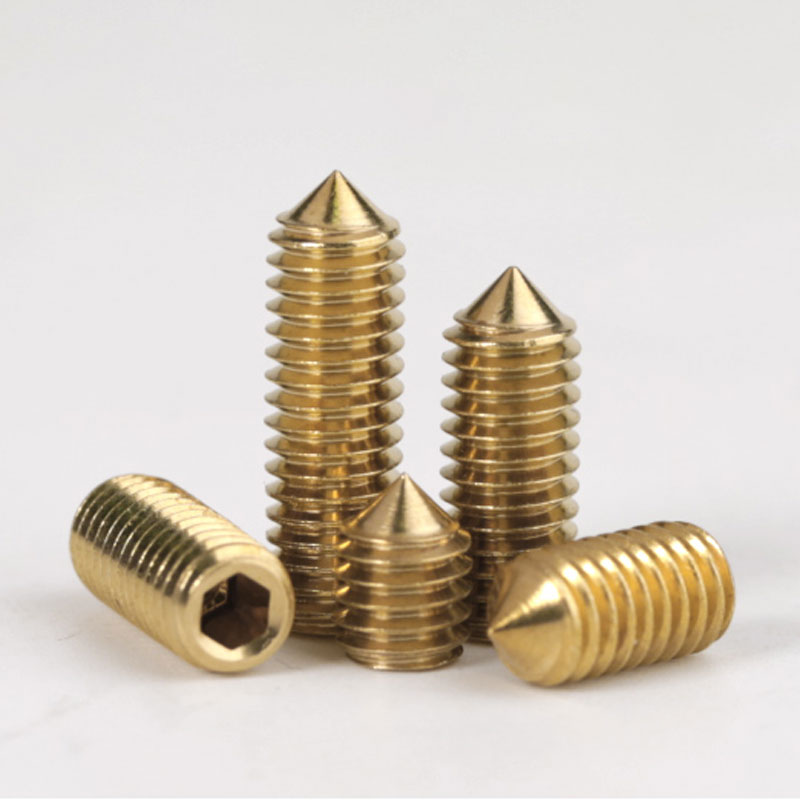

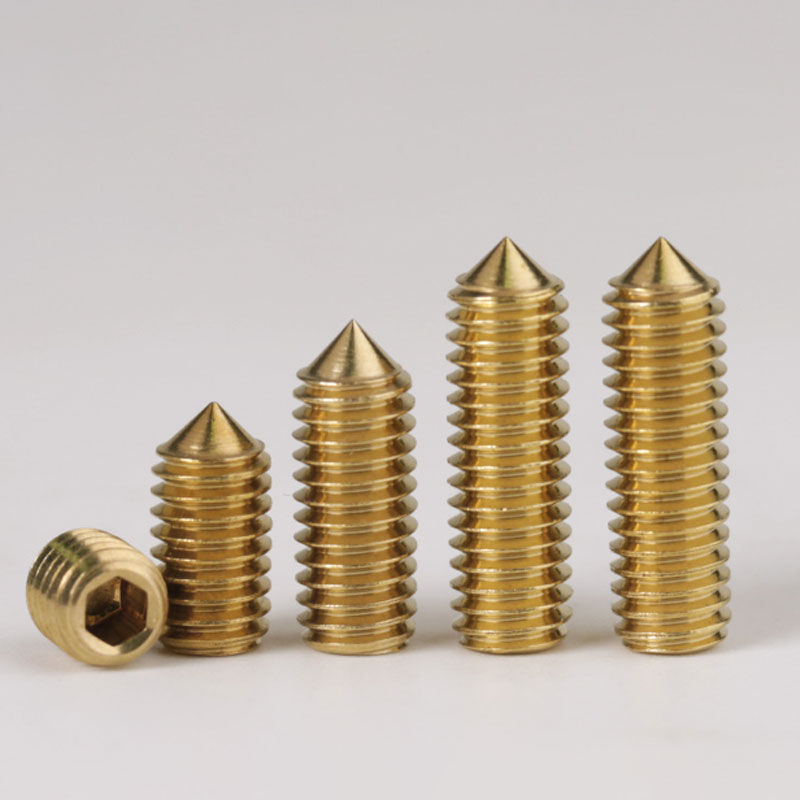

metric yellow brass hexagon socket headless tip end set screw blot 1 pcs
$0.0389
Thread Type: metric Material: yellow brass Threading: fully threaded Fastener screw type: hexagon socket headless tip end set screw blot
d |
P |
t | s | L | hexagon wrench |
||
| min | nominal | max | min | ||||
| M3 | 0.5 | 1.2 | 1.5 | 1.58 | 1.52 | 3-10mm | 1.5mm |
| M4 | 0.7 | 1.5 | 2 | 2.08 | 2.02 | 4-12mm | 2mm |
| M5 | 0.8 | 2 | 2.5 | 2.58 | 2.52 | 5-16mm | 2.5mm |
| M6 | 1 | 2 | 3 | 3.08 | 3.02 | 6-20mm | 3mm |
