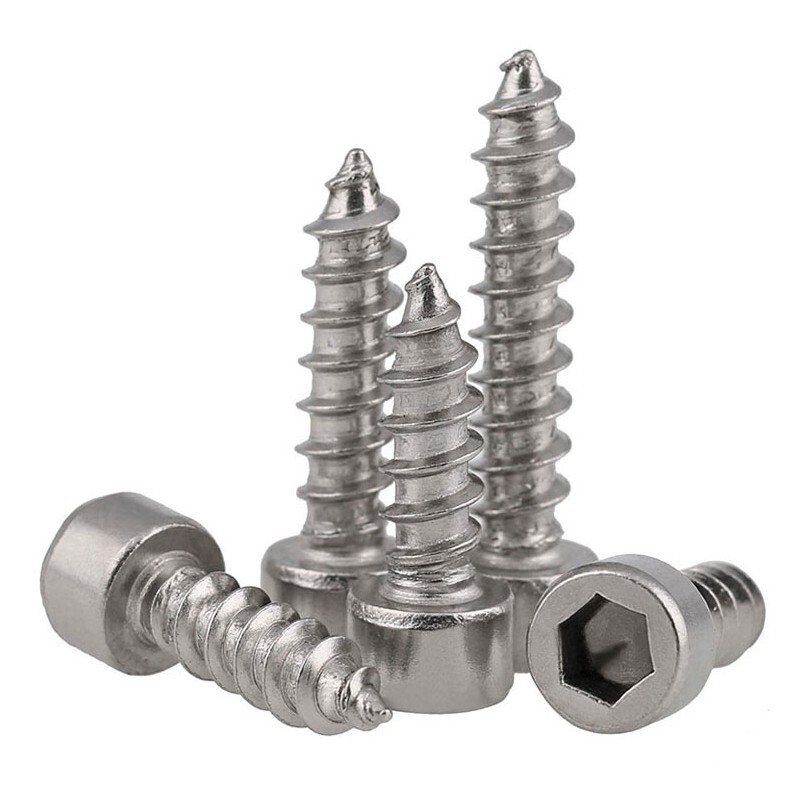

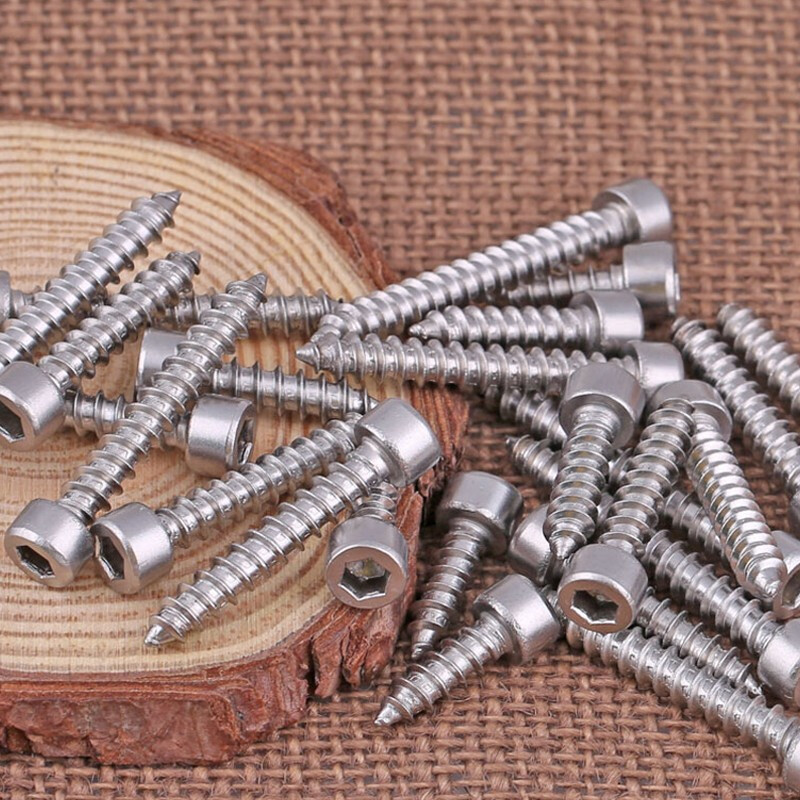

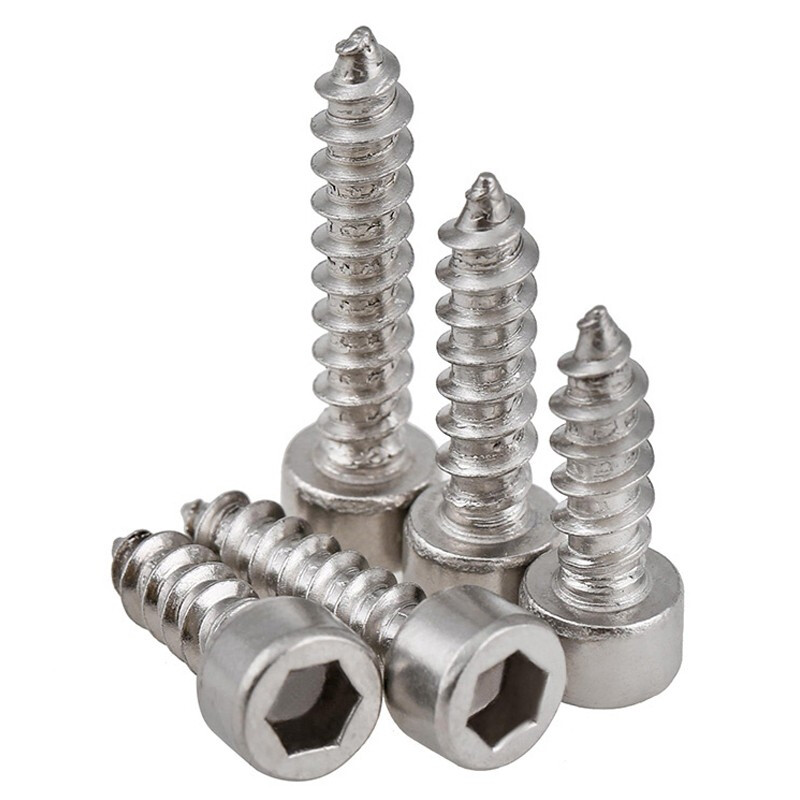

metric SS304 stainless steel cylindrical head hexagon socket tapping screw 1 pcs
$0.0061
Thread Type: metric Material: SS304 stainless steel Threading: fully threaded Fastener screw type: cylindrical head hexagon socket tapping screw
| d | dk | k | S | ||||
| max | min | max | min | nominal | max | min | |
| M2 | 3.98 | 3.62 | 2.00 | 1.86 | 1.5 | 1.580 | 1.520 |
| M2.5 | 4.68 | 4.32 | 2.50 | 2.36 | 2 | 2.280 | 2.020 |
| M3 | 5.68 | 5.32 | 3.00 | 2.86 | 2.5 | 2.580 | 2.520 |
| M3.5 | 6.22 | 6.32 | 3.50 | 3.36 | 3 | 2.780 | 2.520 |
| M4 | 7.22 | 6.78 | 4.00 | 3.82 | 3 | 3.080 | 3.020 |
| M5 | 8.72 | 8.28 | 5.00 | 4.82 | 4 | 4.095 | 4.020 |
| M6 | 10.22 | 9.78 | 6.00 | 5.70 | 5 | 5.140 | 5.020 |
