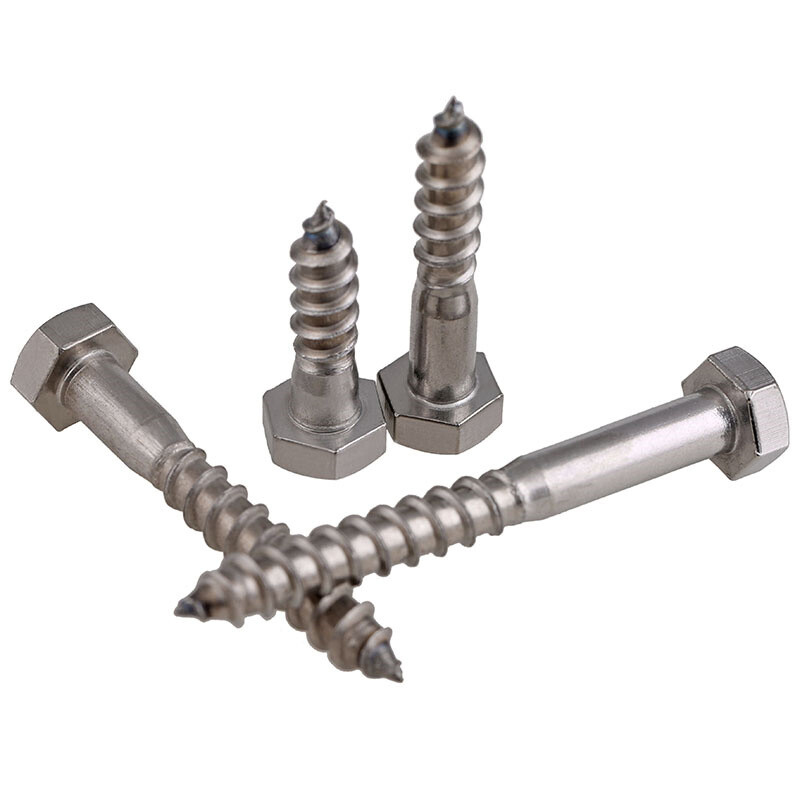

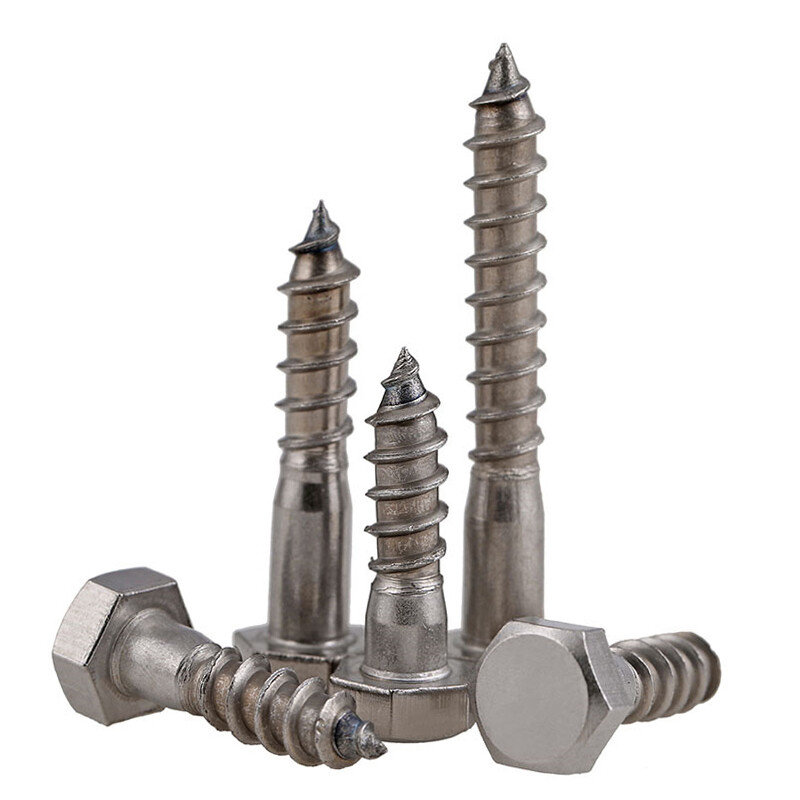

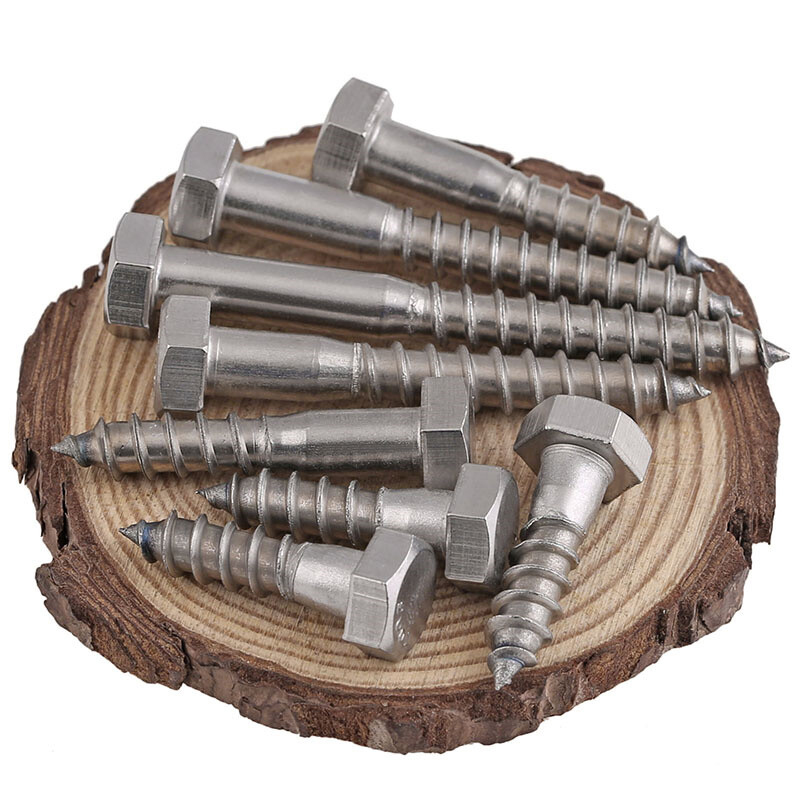

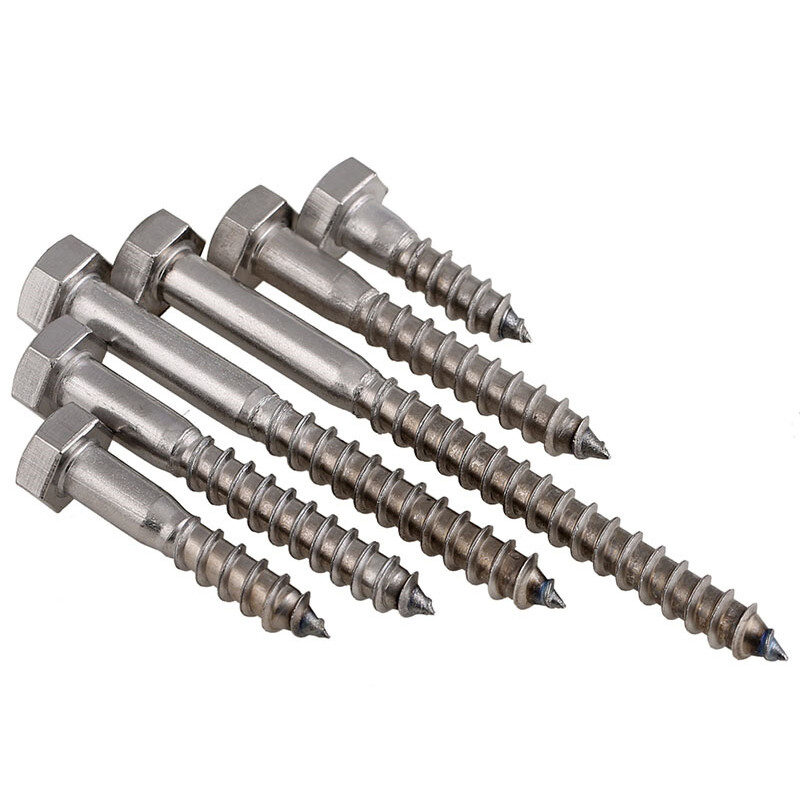

metric SS316 stainless steel hexagon head partially threaded tapping screw 1 pcs
$0.2300
Thread Type: metric Material: SS316 stainless steel Fastener screw type: hexagon head partially threaded tapping screw

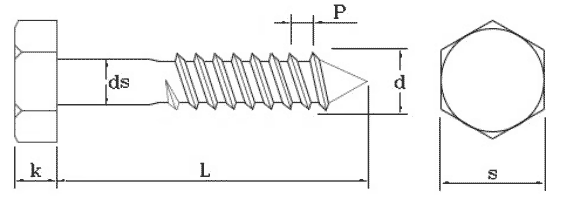

| d | 4 | 5 | 6 | 6.3 | 7 | 8 | 10 | 12 | 16 | 20 | |
ds | max | 4 | 5 | 6 | 6.3 | 7 | 8 | 10 | 12 | 16 | 20 |
| min | 3.52 | 4.52 | 5.52 | 6.02 | 6.42 | 7.42 | 9.42 | 11.3 | 15.3 | 19.3 | |
k | max | 3.1 | 3.88 | 4.38 | 4.45 | 5.38 | 5.88 | 7.45 | 8.45 | 10.45 | 13.9 |
| min | 2.5 | 3.13 | 3.63 | 3.90 | 4.63 | 5.13 | 6.55 | 7.55 | 9.55 | 12.1 | |
s | max | 7 | 8 | 10 | 11 | 12 | 13 | 17 | 19 | 24 | 30 |
| min | 6.64 | 7.64 | 9.64 | 10.57 | 11.57 | 12.57 | 16.57 | 18.48 | 23.16 | 29.16 | |
