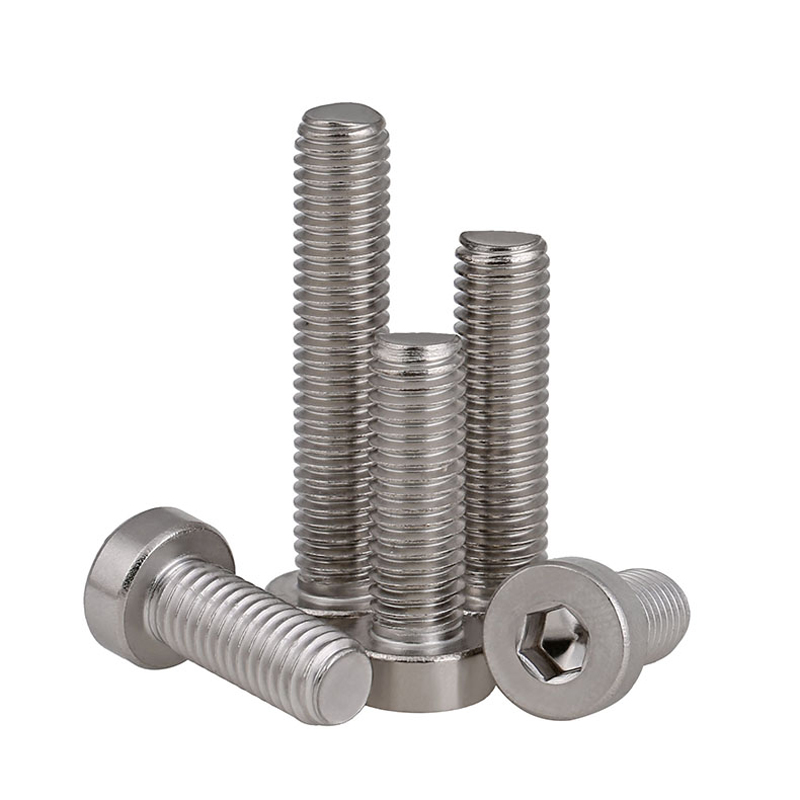

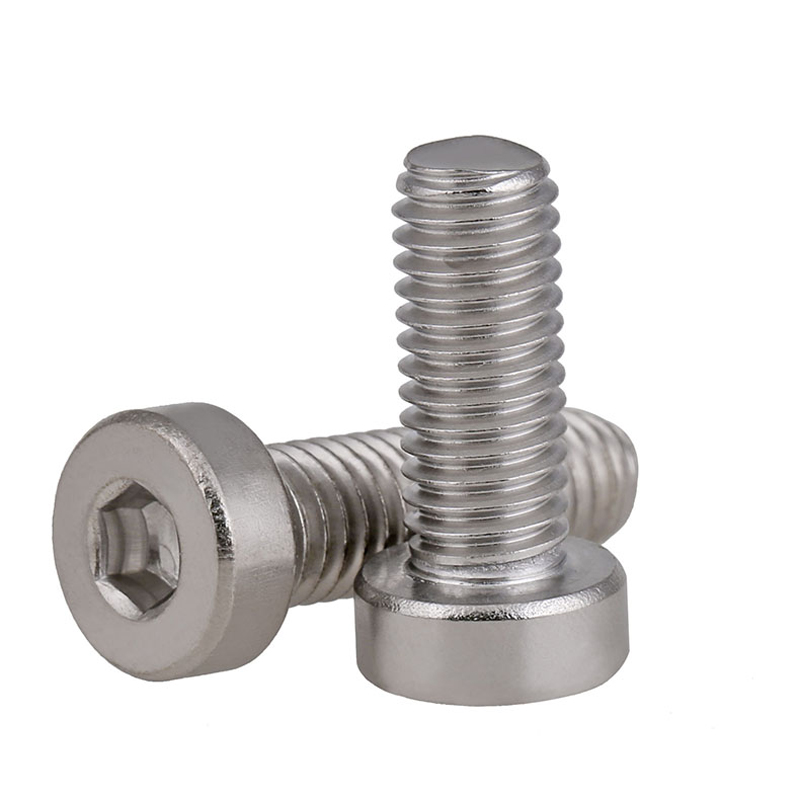

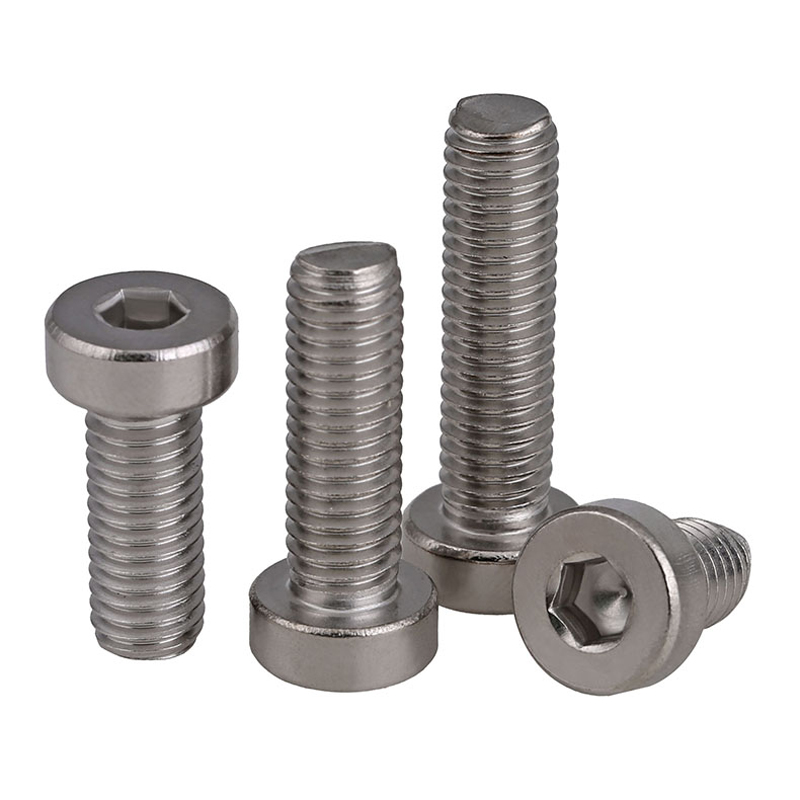

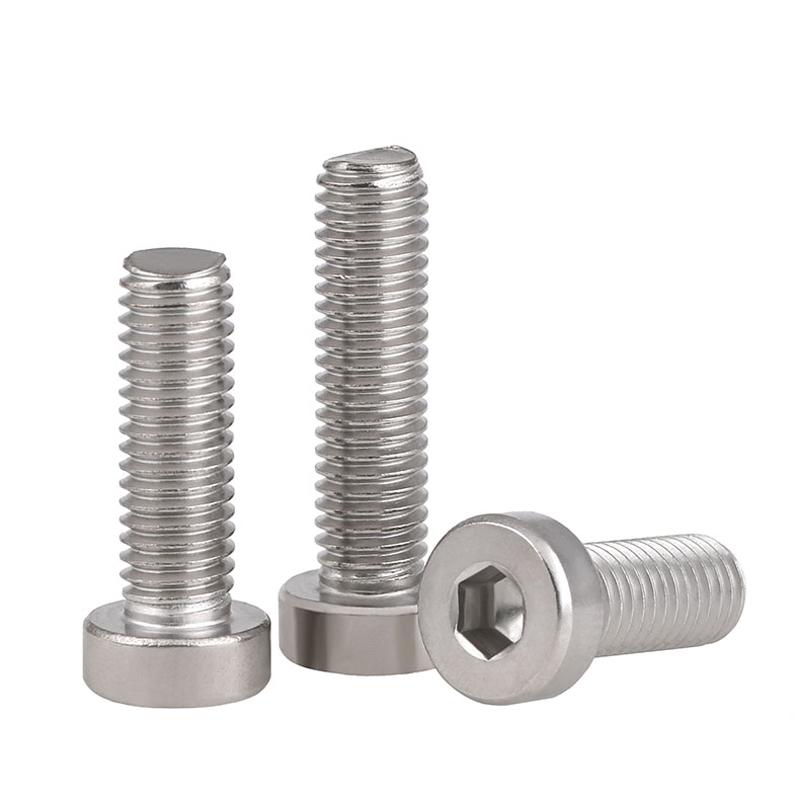

metric SS304 stainless steel low profile cylindrical thin head hexagon socket blot 1 pcs
$0.0063
Thread Type: metric Material: SS304 stainless steel Socket Head Profile: low profile Threading: fully threaded Fastener screw type: cylindrical thin head hexagon socket blot

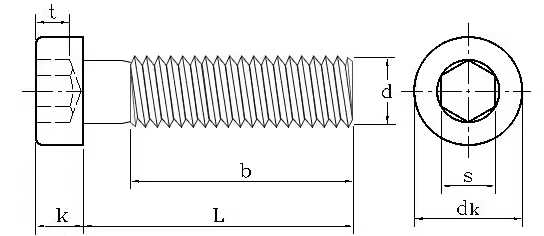

d |
P |
dk | k | s | t | ||||
| max | min | max | min | max | min | max | min | ||
| M3 | 0.5 | 5.5 | 5.32 | 2 | 1 .86 | 2.1 | 2.02 | 1.62 | 1,38 |
| M4 | 0.7 | 7 | 6.78 | 2.8 | 2.66 | 2.6 | 2.52 | 2.42 | 2.18 |
| M5 | 0.8 | 8.5 | 8.28 | 3.5 | 3.32 | 3.1 | 3.02 | 2.82 | 2.58 |
| M6 | 1 | 10 | 9.78 | 4 | 3.82 | 4.12 | 4.02 | 3.12 | 2.28 |
| M8 | 1.25 | 13 | 12.73 | 5 | 4.82 | 5.14 | 5.02 | 3.95 | 3.65 |
| M10 | 1.5 | 16 | 15.73 | 6 | 5.82 | 7.1 75 | 7.025 | 4.65 | 4.35 |
