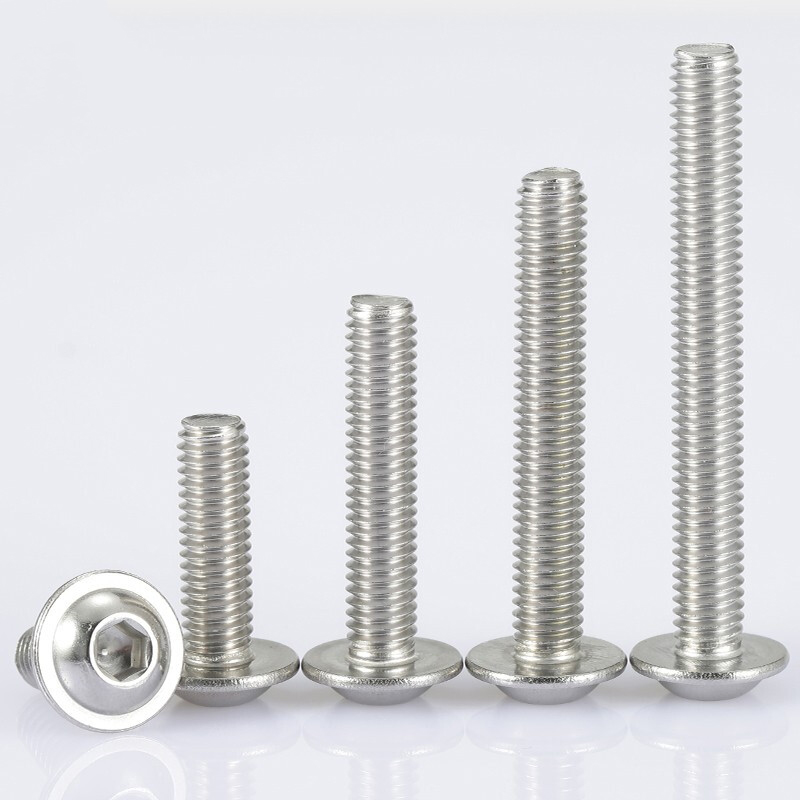

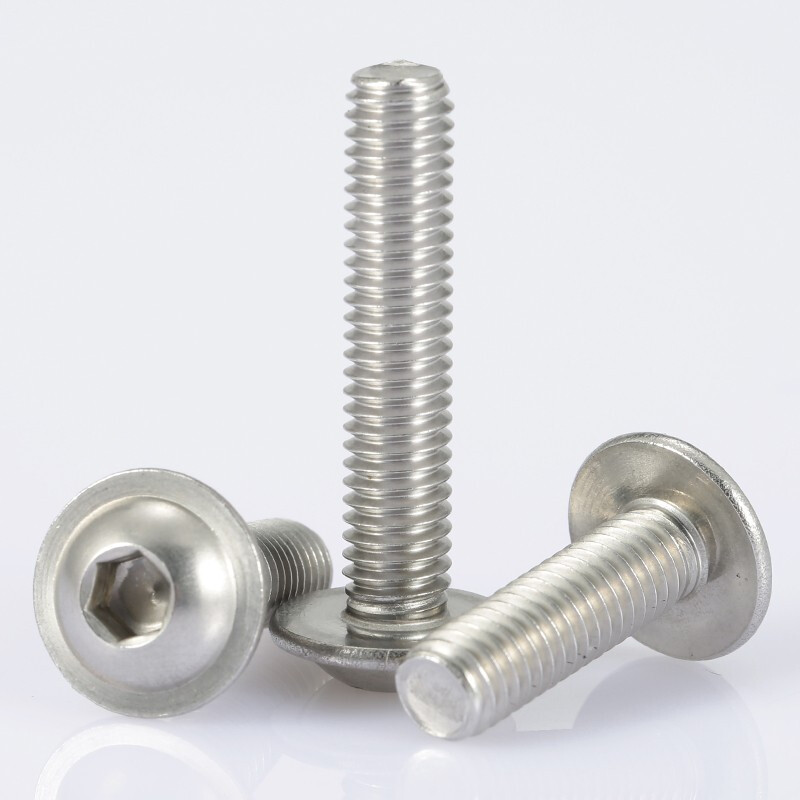

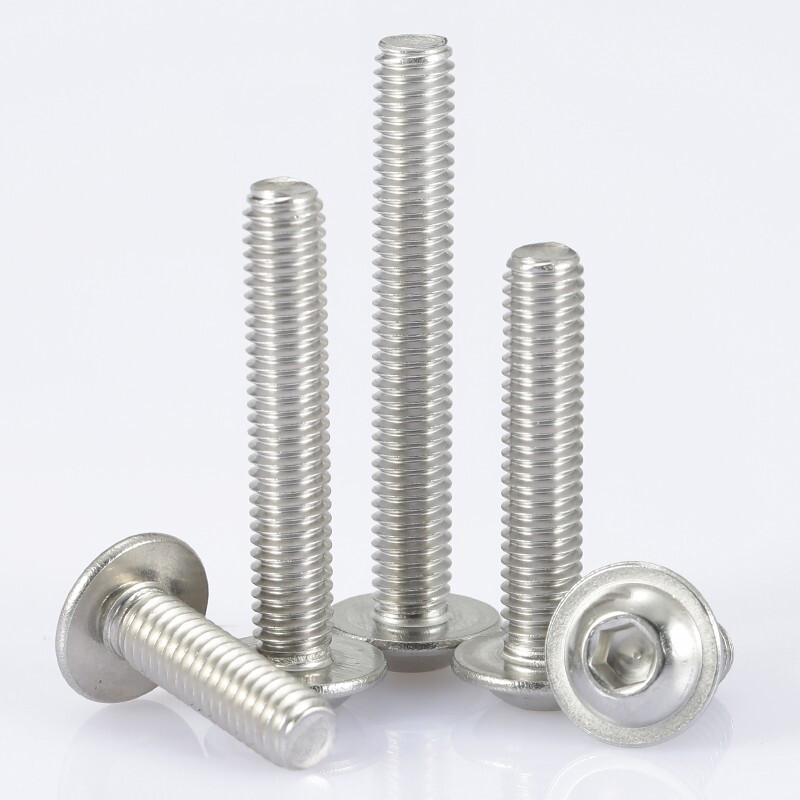

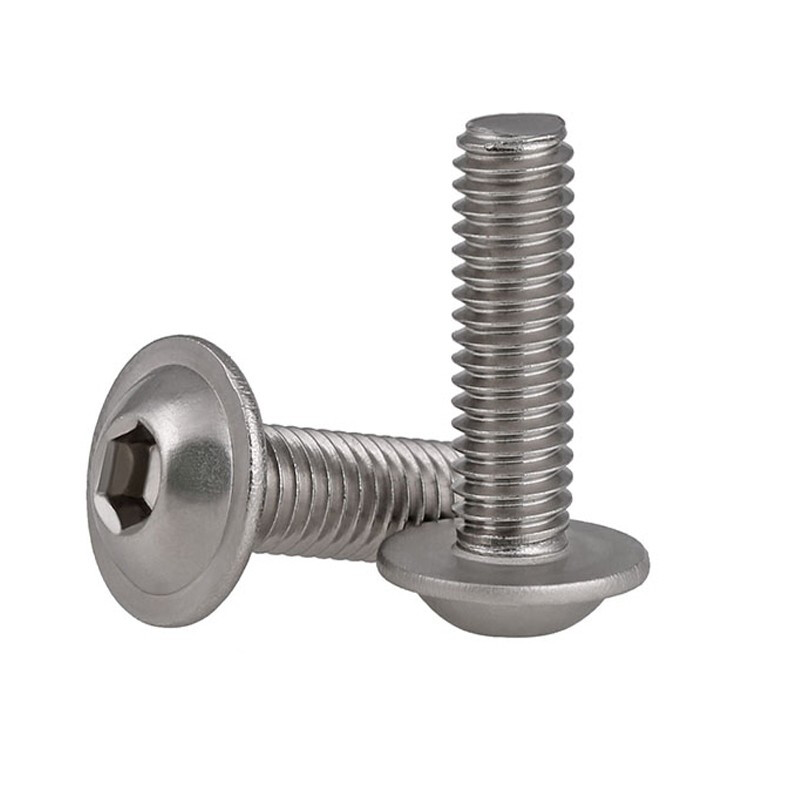

metric SS304 stainless steel hexagon socket round head blot with washer 1 pcs
$0.0080
Thread Type: metric Material: SS304 stainless steel Threading: fully threaded Fastener screw type: hexagon socket round head blot with washer

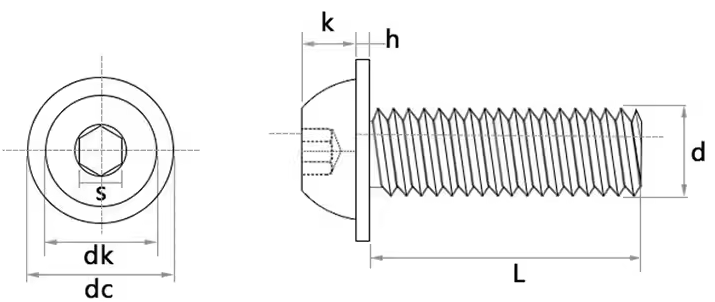

d |
P |
h | dk | dc | K | S | Wrench |
||||||
| max | min | max | min | max | min | max | min | max | min | ||||
| M2 | 0.4 | 0.9 | 4.2 | 5.1 | 0.6 | 1.5 | 1. 5mm | ||||||
| M2.5 | 0.45 | 0.8 | 4.75 | 5.9 | 0.6 | 1.5 | 1.. 5mm | ||||||
| M3 | 0.5 | 0.7 | 0.55 | 5.7 | 5.4 | 6.9 | 6.32 | 1.65 | 1.4 | 2.045 | 2.02 | 2mm | |
| M4 | 0.7 | 0.8 | 0.65 | 8 | 7.5 | 9.4 | 8.82 | 2.2 | 1.95 | 2.56 | 2.52 | 2.5mm | |
| M5 | 0.8 | 1 | 0.8 | 10 | 9.45 | 11.8 | 11.1 | 2.75 | 2.5 | 3.071 | 3.02 | 3mm | |
| M6 | = | 1.3 | 1 | 10.5 | 10.07 | 13.6 | 12.9 | 3.3 | 3 | 4.084 | 4.02 | 4mm | |
| M8 | 1.25 | 1.3 | 14.4 | 17.4 | 3.9 | 5 | 5mm | ||||||
