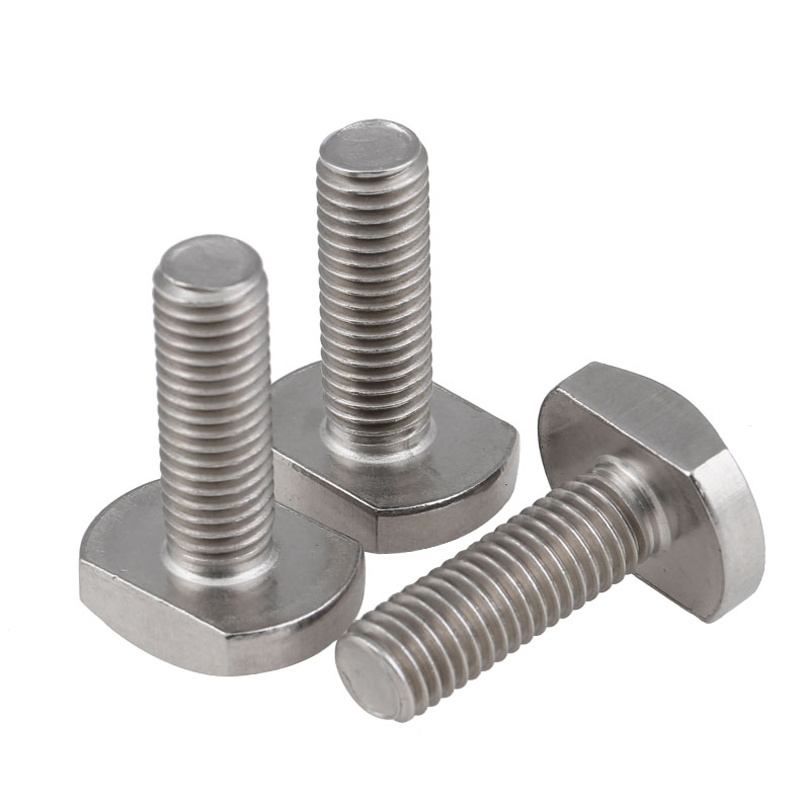

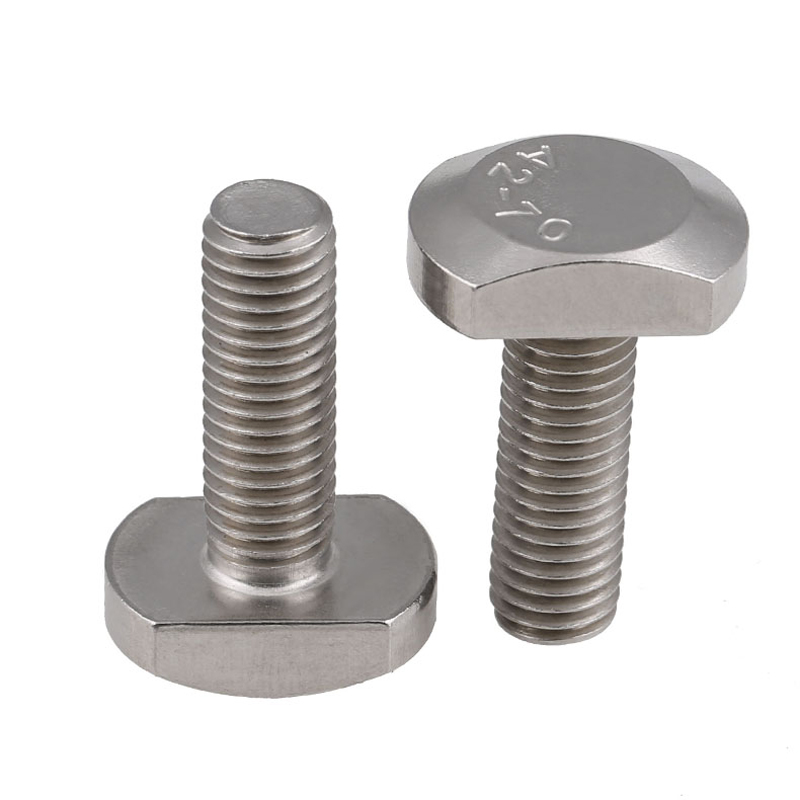

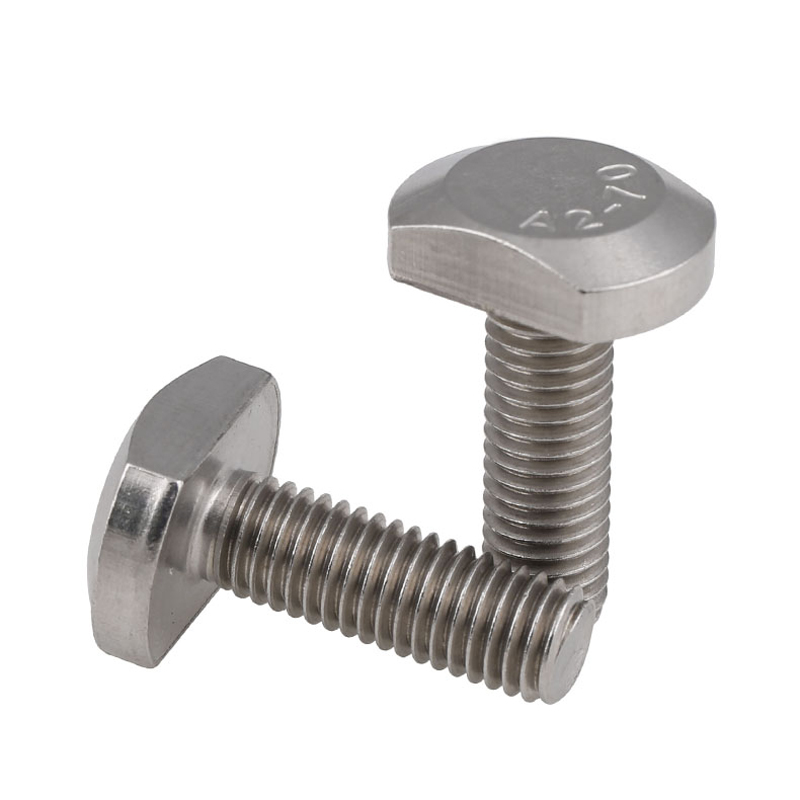

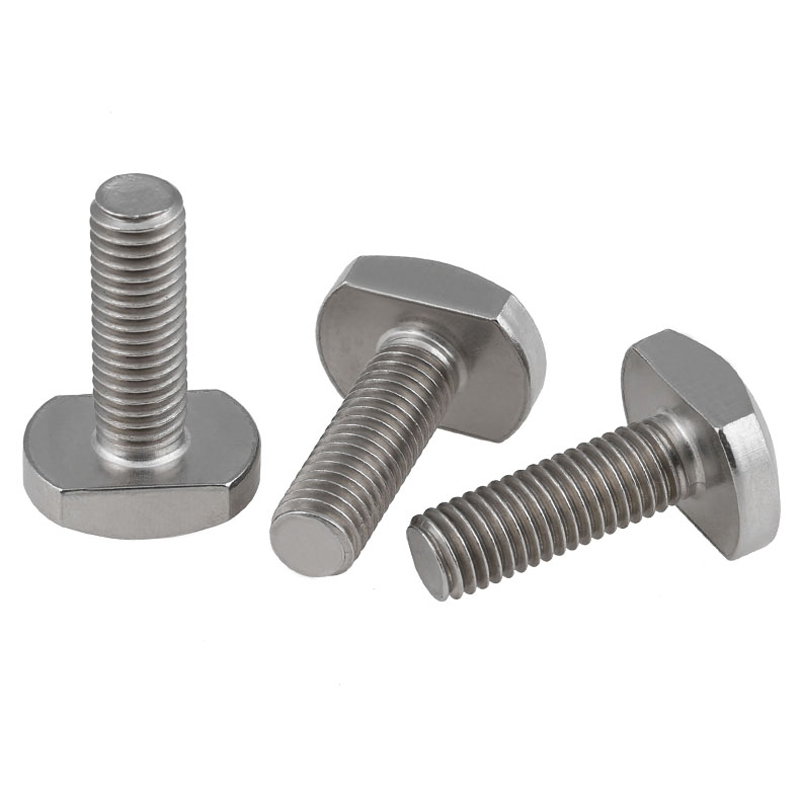

metric SS304 stainless steel T-bolt 1 pcs
$0.0843
Thread Type: metric Material: SS304 stainless steel Fastener screw type: T-bolt

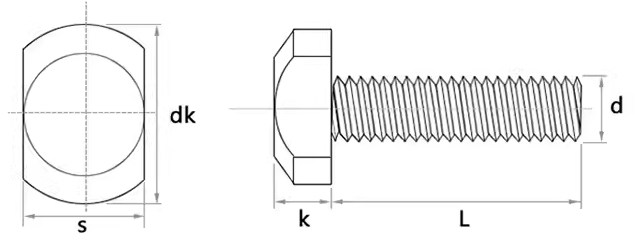

| d | M5 | M6 | M8 | M10 | M12 | M16 |
| Pitch | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 |
| dk | 12 | 15.8 | 19.8 | 25.0 | 28.5 | 38 |
| s | 8.8 | 11.7 | 13.8 | 18.3 | 23.2 | 28 |
| k | 3.9 | 5.0 | 6.0 。 | 6.2 | 6.6 | 11.5 |
