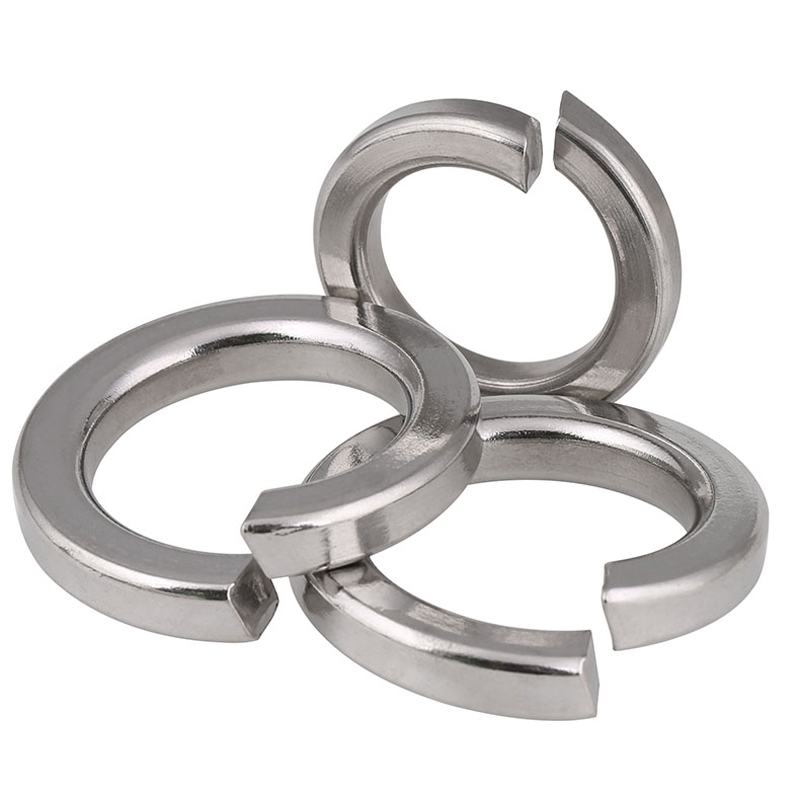

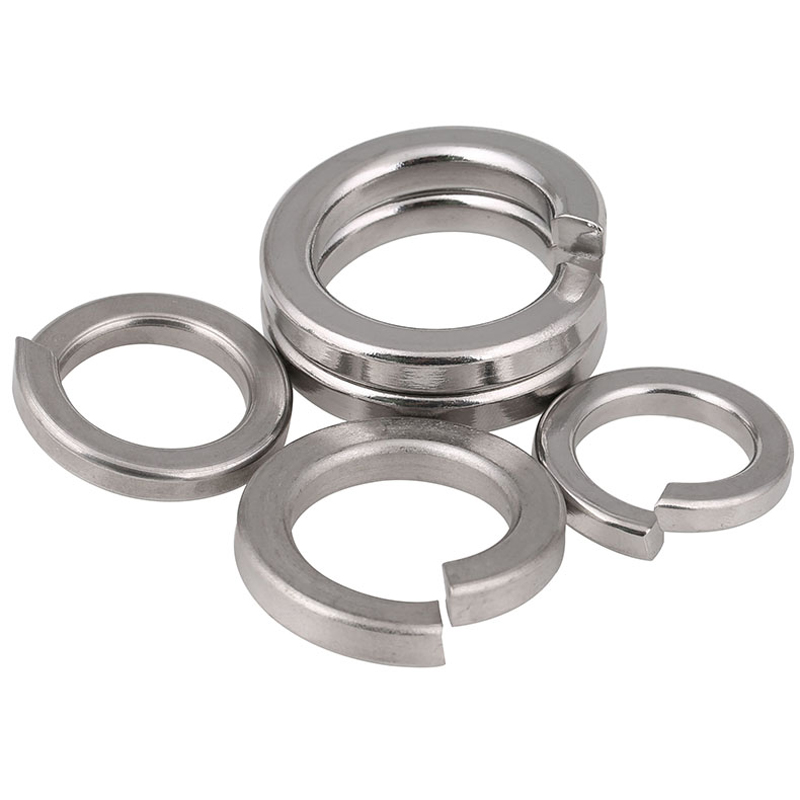

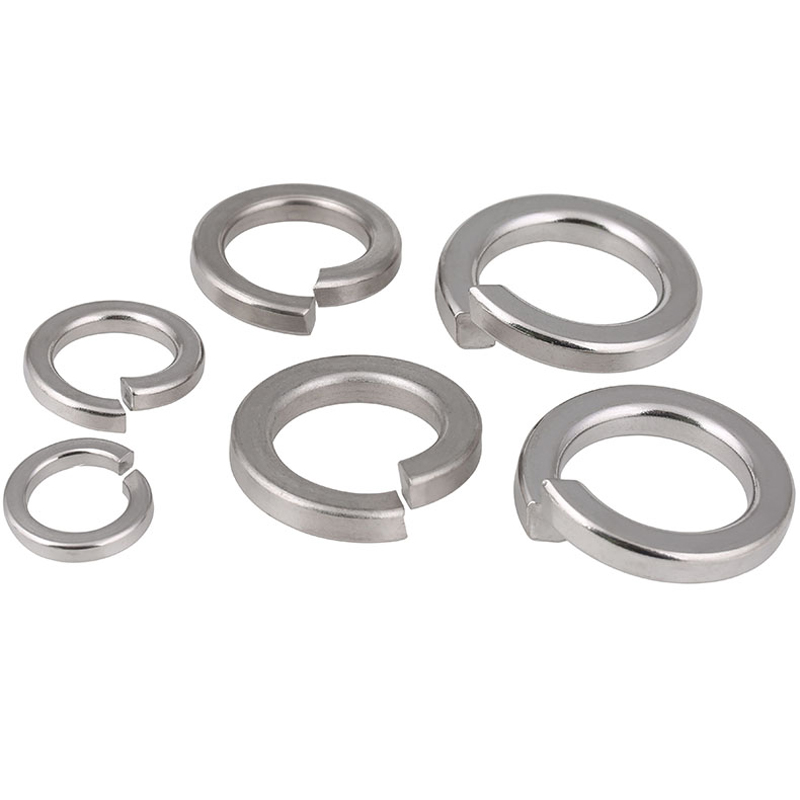

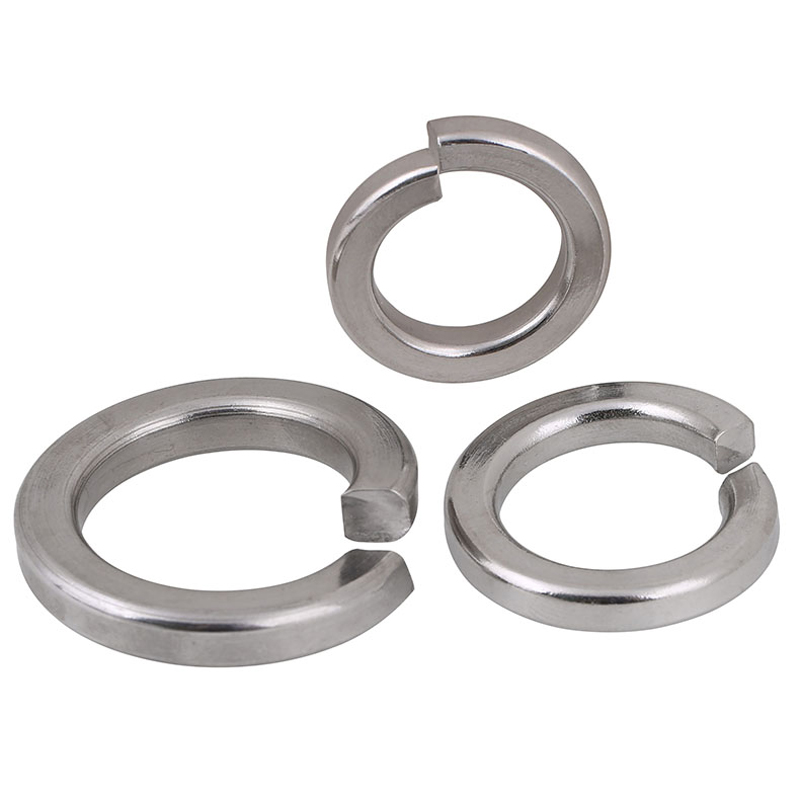

metric SS316 stainless steel spring split lock washer 1 pcs
$0.0060
Thread Type: metric Material: SS316 stainless steel Fastener washer type: spring split lock washer
specification |
d | h | b | H | |||
| min | max | min | max | ≈ | min | max | |
| M1.6 | 1.65 | 1.85 | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 |
| M2 | 2.1 | 2.35 | 0.43 | 0.58 | 0.7 | 1 | 1.25 |
| M2.5 | 2.6 | 2.85 | 0.57 | 0.73 | 0.75 | 1.3 | 1.53 |
| M3 | 3.1 | 3.4 | 0.7 | 0.9 | 0.8 | 1.6 | 1.98 |
| M3.5 | 3.6 | 4.0 | 0.74 | 0.98 | 0.85 | 1.8 | 2 |
| M4 | 4.1 | 4.4 | 1 | 1.2 | 1.1 | 2 | 2.6 |
| M5 | 5.1 | 5.4 | 1.2. | 1.4 | 1.3 | 2.6 | 3.25 |
| M6 | 6.1 | 6.68 | 1.5 | 1.7 | 1.6 | 3.2 | 4 |
| M8 | 8.1 | 8.68 | 2 | _2.2 | 2 | 4.2 | 5.25 |
| M10 | 10.2 | 10.9 | 2.45 | 2.75 | 2.6 | 5.2 | 6.5 |
| M12 | 12.2 | 12.9 | 2.95 | 3.25 | 3.1 | 6.2 | 7.75 |
| M14 | 14.2 | 14.9 | 3.4 | 3.8 | 3.6 | 7.2 | 9 |
| M16 | 16.2 | 16.9 | 3.9 | 4.3 | 4 | 8.2 | 10.25 |
| M18 | 18.2 | 19.04 | 4.3 | 4.7 | 4.4 | 9 | 11.25 |
| M20 | 20.2 | 21.04 | 4.8 | 5.2 | 5 | 10 | 12. 5 |
| M22 | 22.5 | 23.04 | 5.3 | 5.7 | 5.3 | 11 | 13.75 |
| M24 | 24.5 | 25.5 | 5.8 | 6.2 | 6 | 12 | 15 |
| M27 | 27.5 | 28.5 | 6.5 | 7.1 | 7.1 | 13.6 | 17 |
| M30 | 30.5 | 31. 5 | 7.2 | 7.8 | 7.3 | 15 | 18.75 |
| Strong M6 | 6.2 | 6.5 | 1.65 | 1.93 | 2.5 | 3.4 | 3.6 |
| Strong M8 | 8.2 | 8.5 | 2.2 | 2.4 | 3.1 | 4.3 | 4.5 |
| Strong M10 | 10 | 10.6 | 3 | 3.05 | 3.72 | 5 | 5.9 |
| Strong M12 | 12.4 | 12.6 | 3.5 | 3.7 | 4.3 | 6.9 | 7.1 |
| Strong M16 | 16.3 | 17.2 | 4.7 | 4.95 | 5.4 | 9.0 | 9.3 |
| Strong M20 | 20.5 | 20.8 | 6.0 | 6.3 | 6.3 | 11. 6 | 11.9 |
