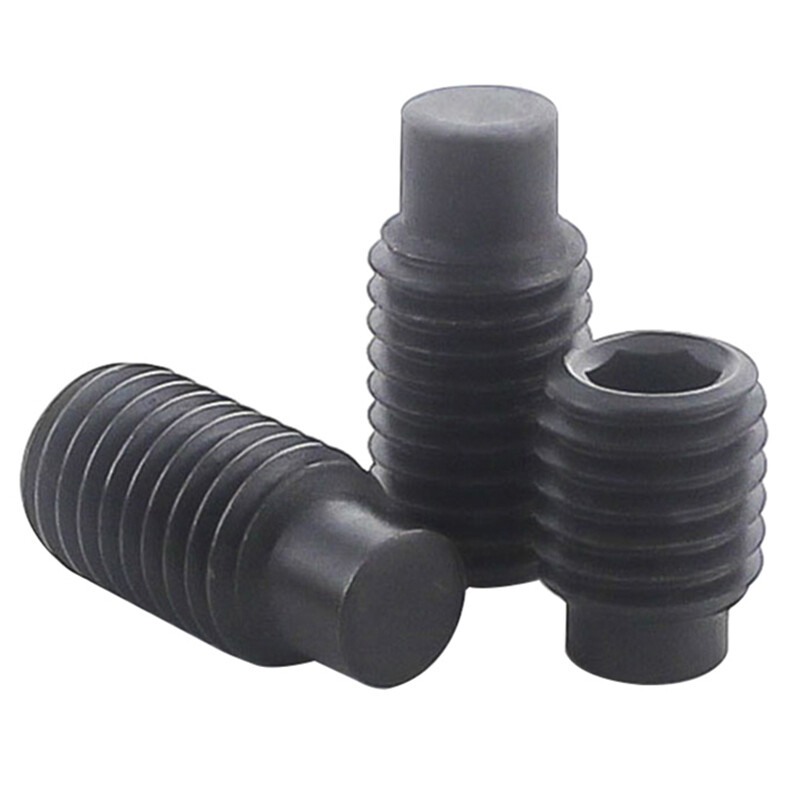

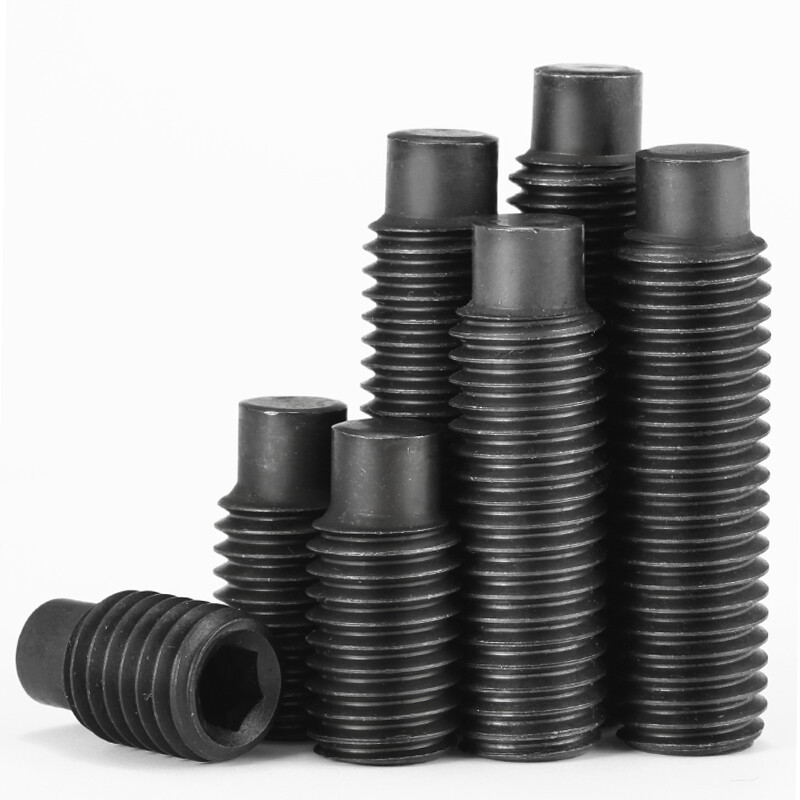

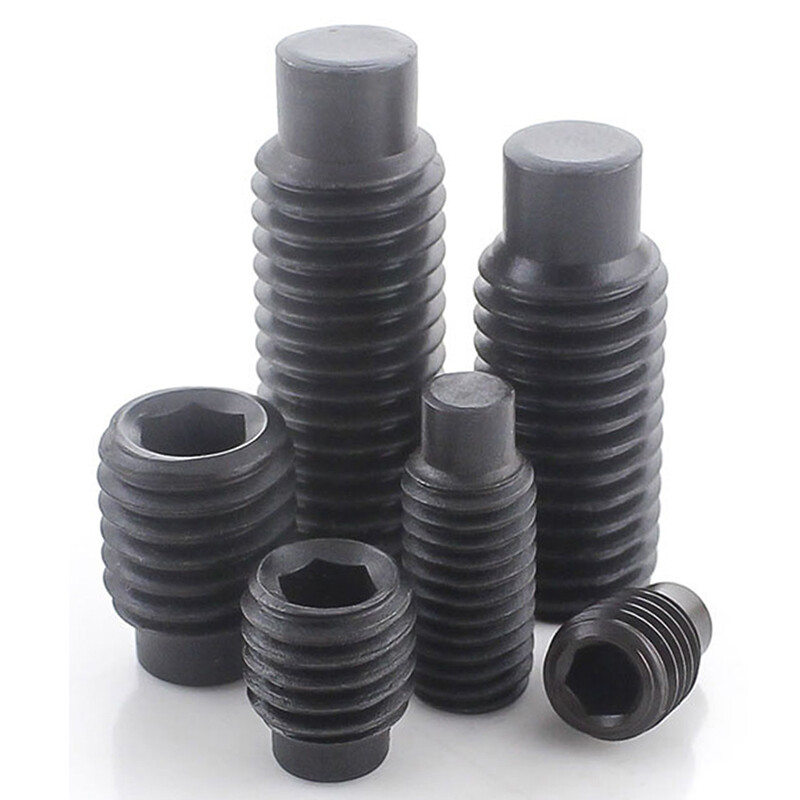

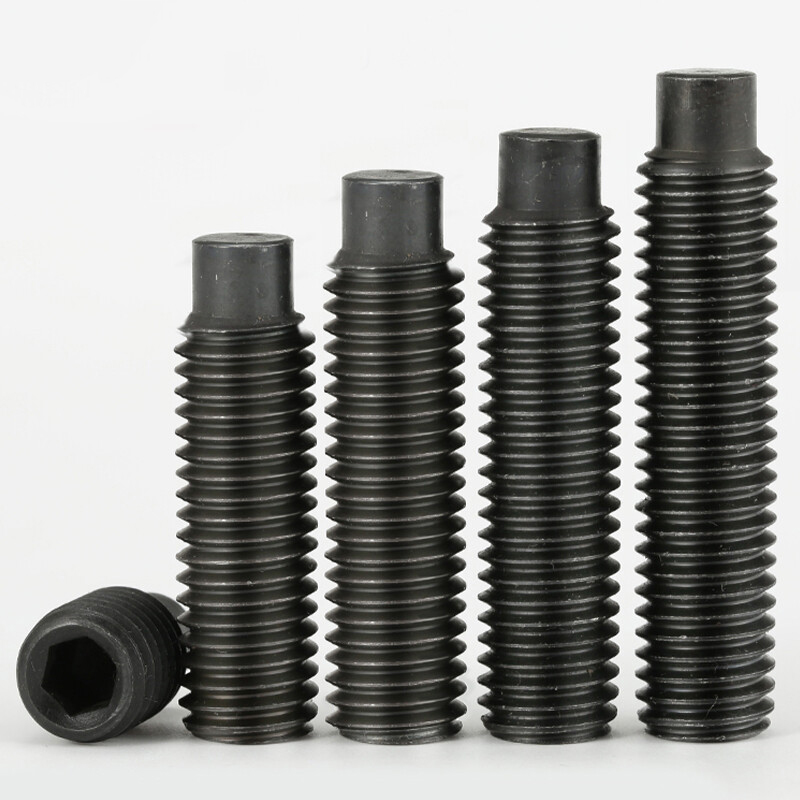

metric black ISO Class 12.9 strength hexagon socket headless convex end set screw blot 1 pcs
$0.0074
Thread Type: metric Color: black Fastener Strength Grade/Class: ISO Class 12.9 strength Threading: fully threaded Fastener screw type: hexagon socket headless convex end set screw blot
d |
P |
S | t min |
dp | Z | wrench |
||||
| nominal | max | min | max | min | max | min | ||||
| M3 | 0.5 | 1.5 | 1.545 | 1.52 | 1.2 | 2 | 1.75 | 1.75 | 1.5 | 1.5mm |
| M4 | 0.7 | 2 | 2.045 | 2.02 | 1.5 | 2.5 | 2.25 | 2.25 | 2 | 2mm |
| M5 | 0.8 | 2.5 | 2.56 | 2.52 | 2 | 3.5 | 3.2 | 2.75 | 2.5 | 2.5mm |
| M6 | 1 | 3 | 3.06 | 3.02 | 2 | 4 | 3.7 | 3.25 | 3 | 3mm |
| M8 | 1.25 | 4 | 4.095 | 4.02 | 3 | 5.5 | 5.2 | 4.3 | 4 | 4mm |
| M10 | 1.5 | 5 | 5.095 | 5.02 | 4 | 7 | 6.64 | 5.3 | 5 | 5mm |
