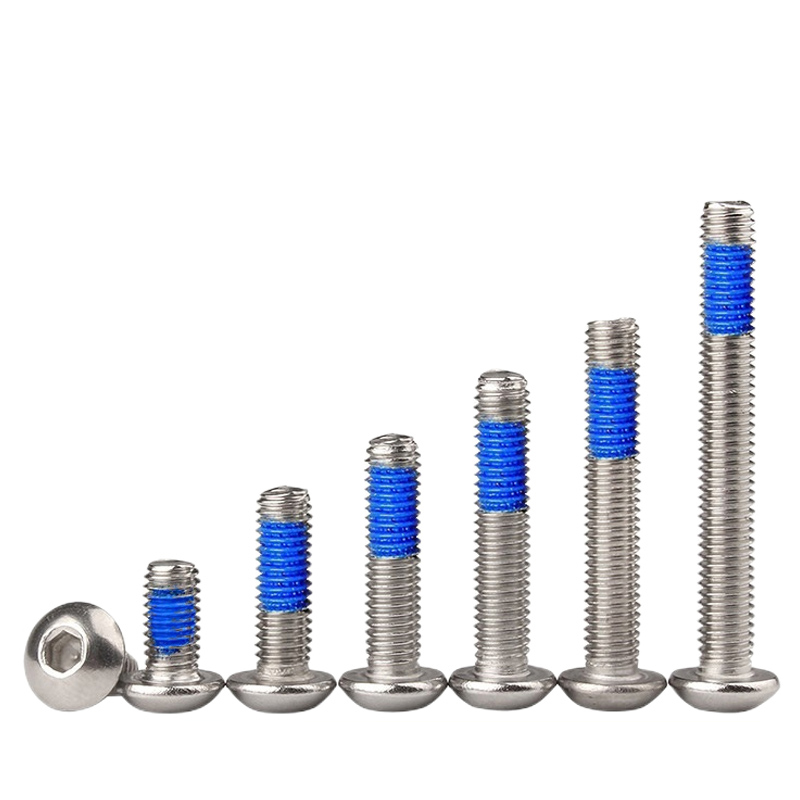

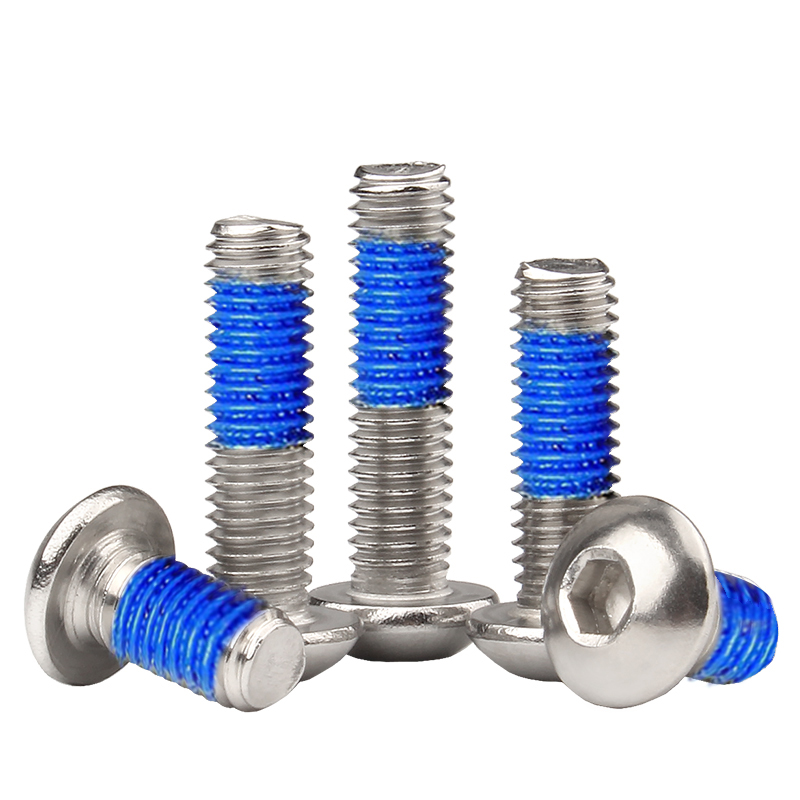

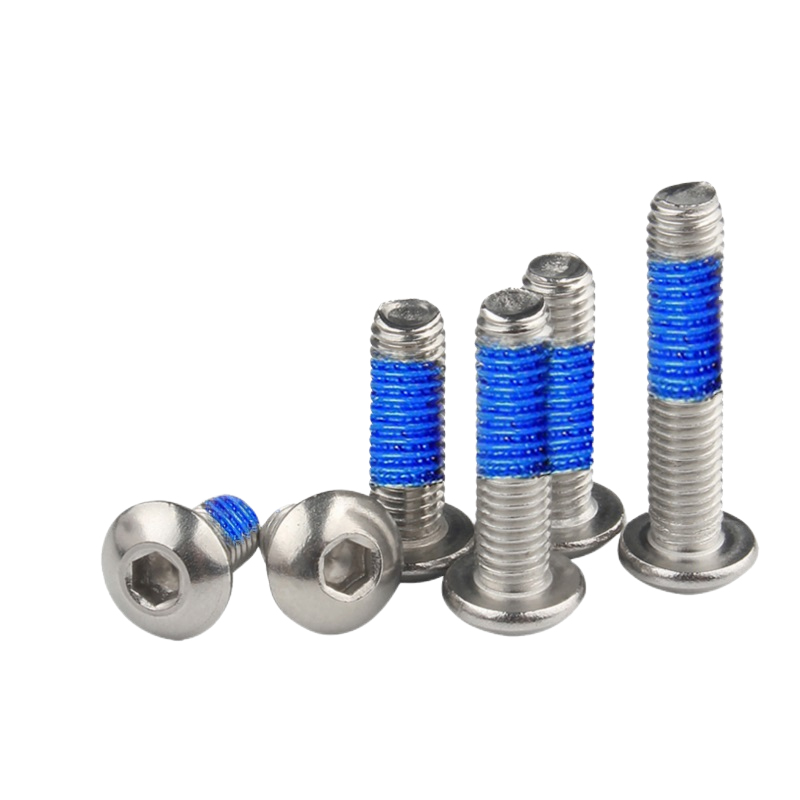

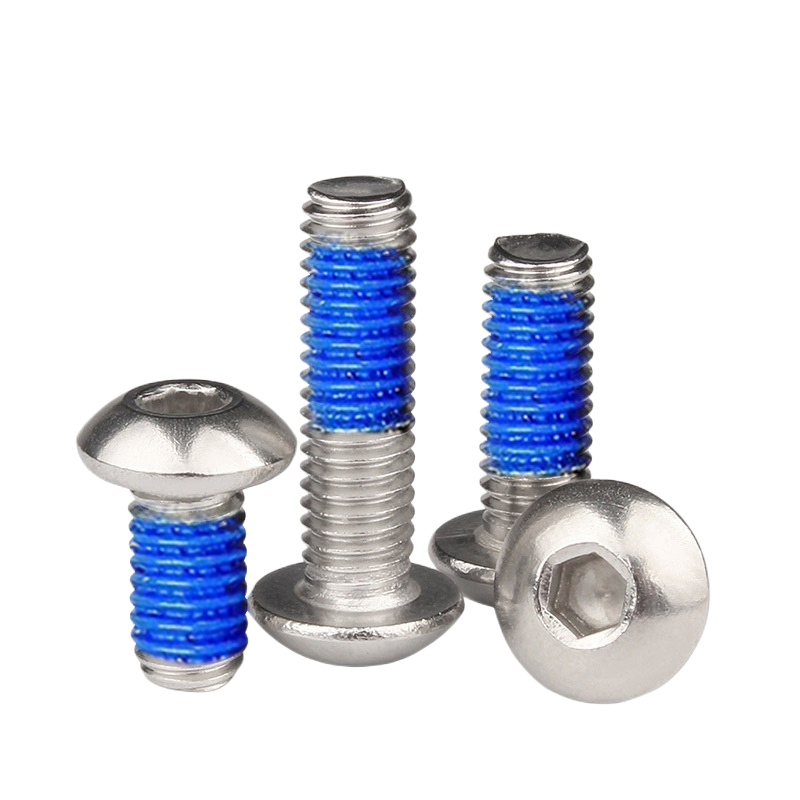

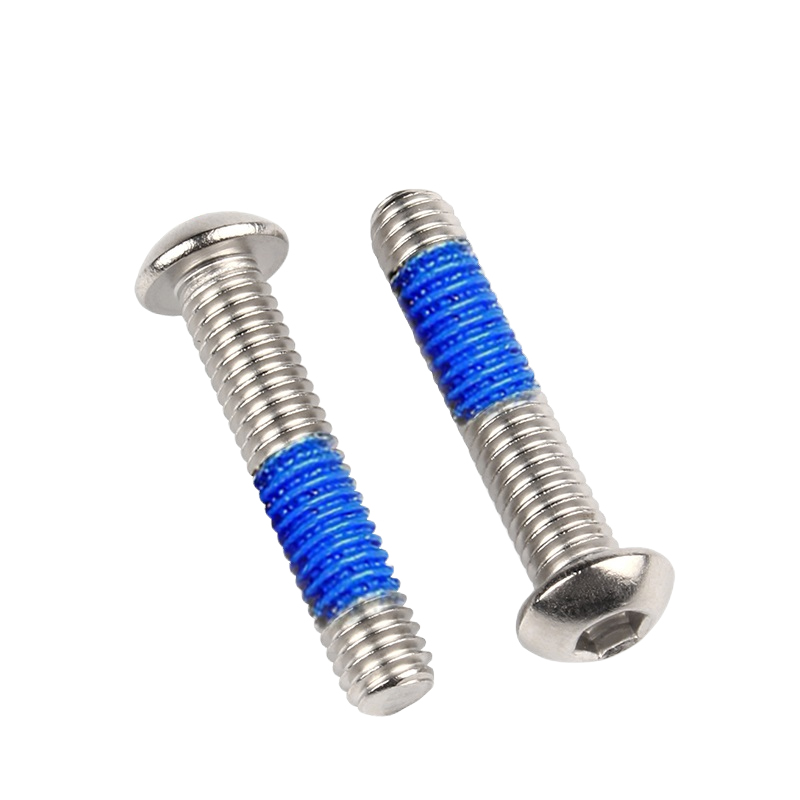

metric SS304 stainless steel dispensing hexagon socket round head blot 1 pcs
$0.0377
Thread Type: metric Material: SS304 stainless steel Surface treatment: dispensing Threading: fully threaded Fastener screw type: hexagon socket round head blot
| Diameter d |
Thread pitch P |
dk | s | k | hexagon wrench | |||
| max | min | max | min | max | min | |||
| M2 | 0.4 | 3.8 | 3.4 | 1. 37 | 1.25 | 1.5 | 1. 25 | 1.25mm |
| M2.5 | 0.45 | 4.6 | 4.1 | 1.51 | 1.37 | 1.6 | 1.39 | 1.mm |
| M3 | 0.5 | 5.7 | 5.4 | 2.04 | 2.02 | 1.65 | 1.4 | 2mm |
| M4 | 0.7 | 7.6 | 7.3 | 2.56 | 2.51 | 2.20 | 1.95 | 2.5mm |
| M5 | 0.8 | 9.5 | 9.14 | 3.07 | 3.02 | 2.75 | 2.50 | 3mm |
| M6 | 1 | 10.5 | 10.1 | 4.08 | 4.02 | 3.3 | 3.0 | 4mm |
| M8 | 1.25 | 14 | 13.57 | 5.08 | 5.02 | 4.4 | 4.0 | 5mm |
| M10 | 1.5 | 17.5 | 17.07 | 6.09 | 6.02 | 5.5 | 5.2 | 6mm |
| M12 | 1.75 | 21 | 20.48 | 8.1 | 8.02 | 6.60 | 6.24 | 8mm |
| M16 | 2 | 28 | 27.48 | 10.1 | 10.02 | 8.80 | 8.44 | 1 0mm |
