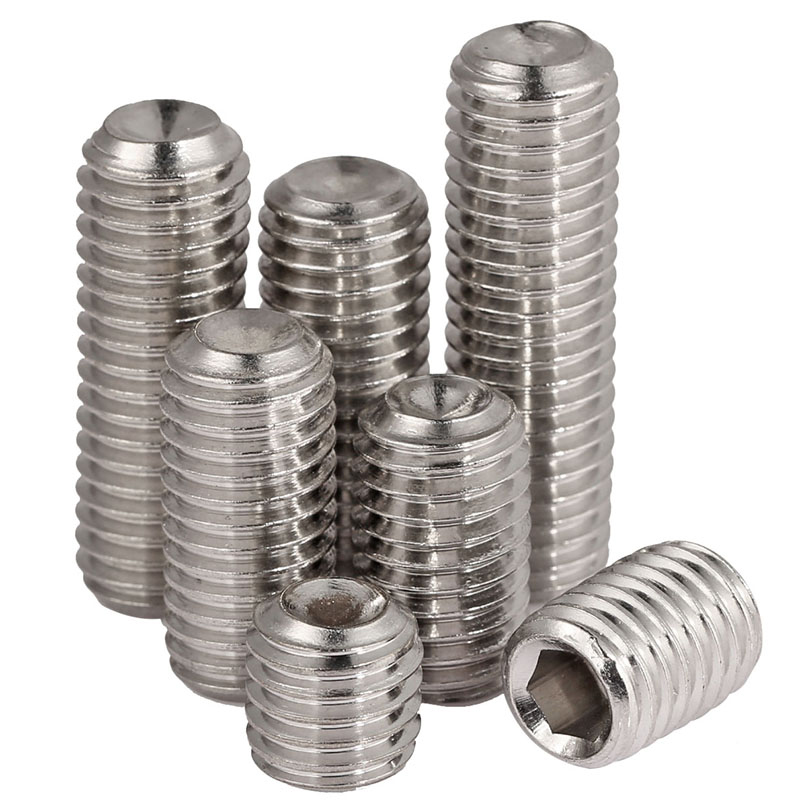

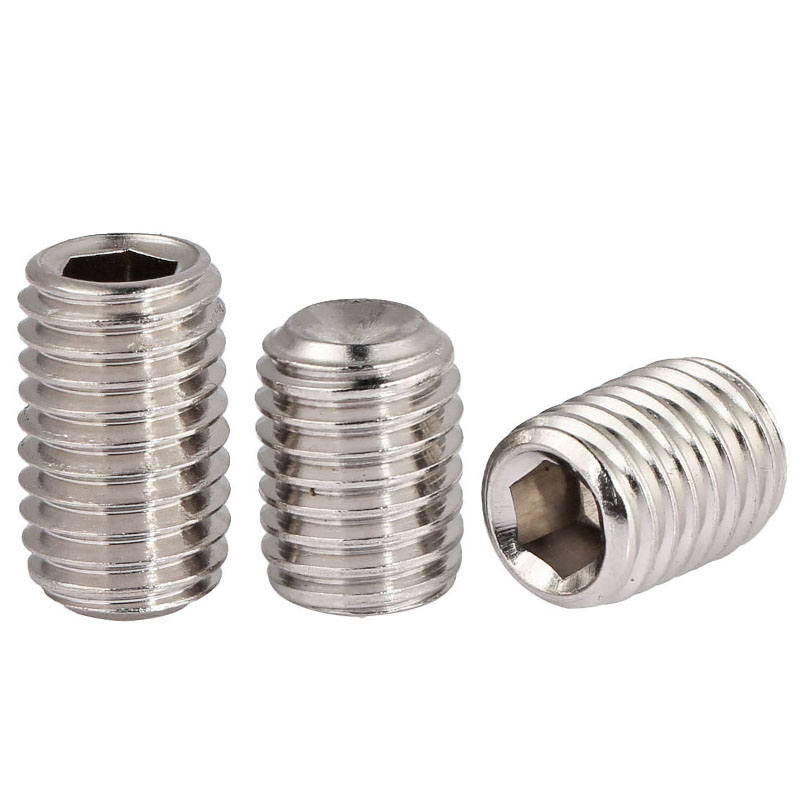

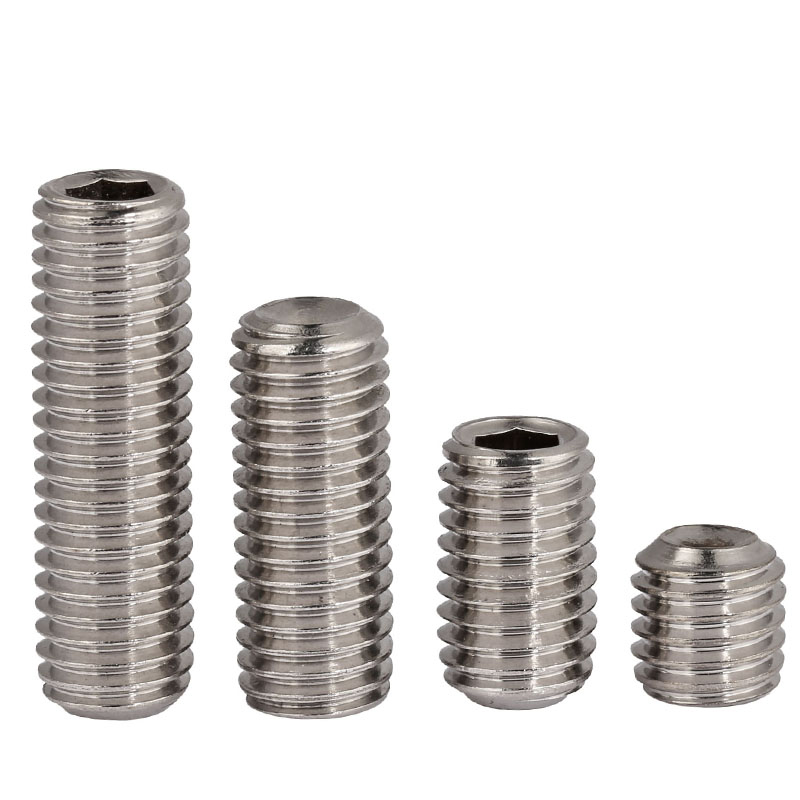

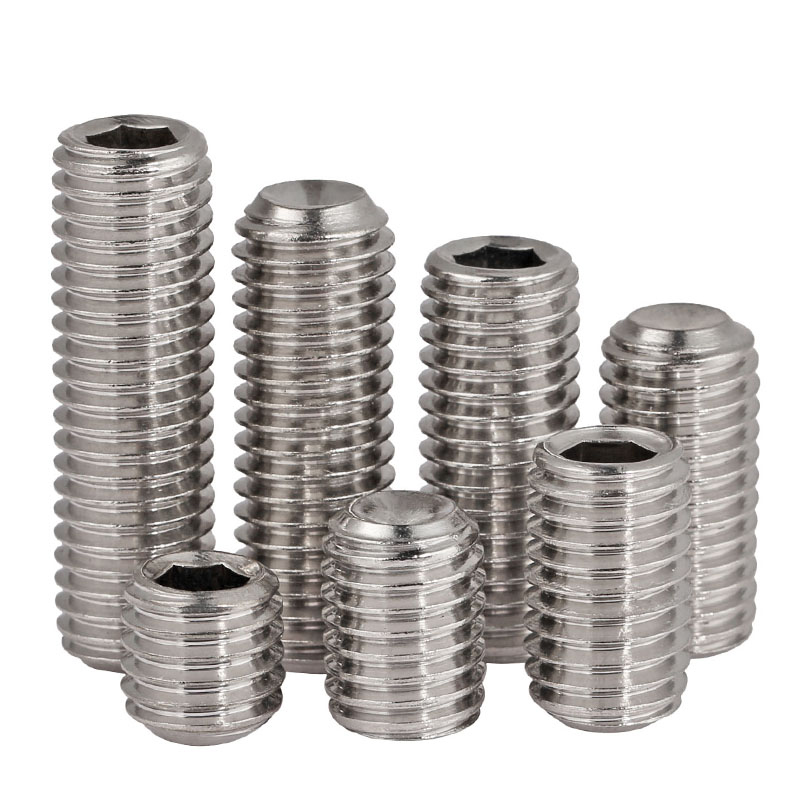

metric SS304 stainless steel hexagon socket headless recessed end set screw blot 1 pcs
$0.0346
Thread Type: metric Material: SS304 stainless steel Threading: fully threaded Fastener screw type: hexagon socket headless recessed end set screw blot
Diameter |
d | P |
s | t | hexagon wrench |
||
| max | min | nominal | max | min | |||
| M3 | 2.87 | 2.98 | 0.5 | 1.5 | 1.52 | 1.2 | 1.5MM |
| M4 | 3.83 | 3.98 | 0.7 | 2 | 2.02 | 1.5 | 2MM |
| M5 | 4.83 | 4. .98 | 0.8 | 2.5 | 2.52 | 2 | 2.5MM |
| M6 | 5.82 | 5.97 | 1 | 3 | 3.02 | 2 | 3MM |
| M8 | 7.79 | 7.96 | 1. .25 | 4 | 4.02 | 3 | 4M M |
| M10 | 9.77 | 9.96 | 1.5 | 5 | 5.02 | 4 | 5MM |
